HM2309 - P-Channel 60V MOSFET

HM2309 Description

HM2309-VB HM2309-VB Datasheet P-Channel 60-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs (nC) Qgd (nC) Conf.

HM2309 Features

* Isolated Package
* High Voltage Isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz)
* Sink to Lead Creepage Distance = 4.8 mm
* P-Channel
* 175 °C Operating Temperature
* Dynamic dV/dt Rating
* Low Thermal Resistance
* Lead (Pb)-free Availabl

📥 Download Datasheet

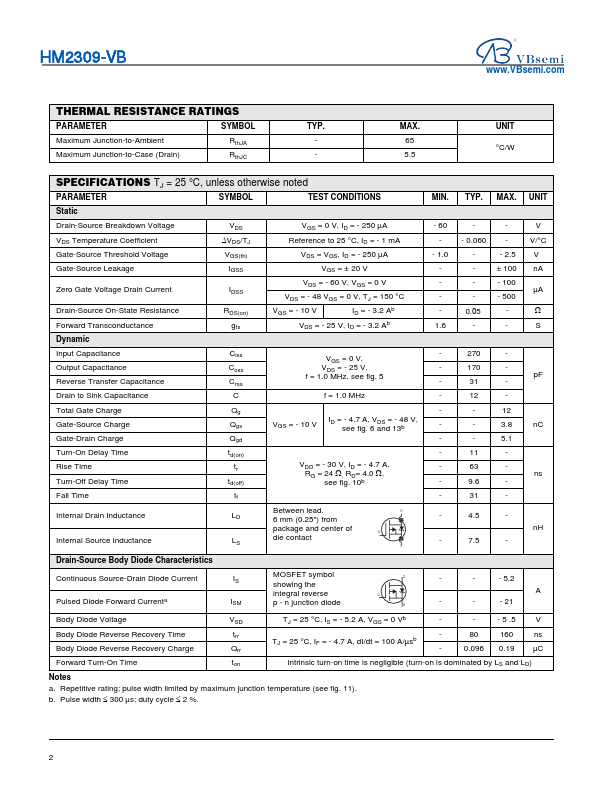

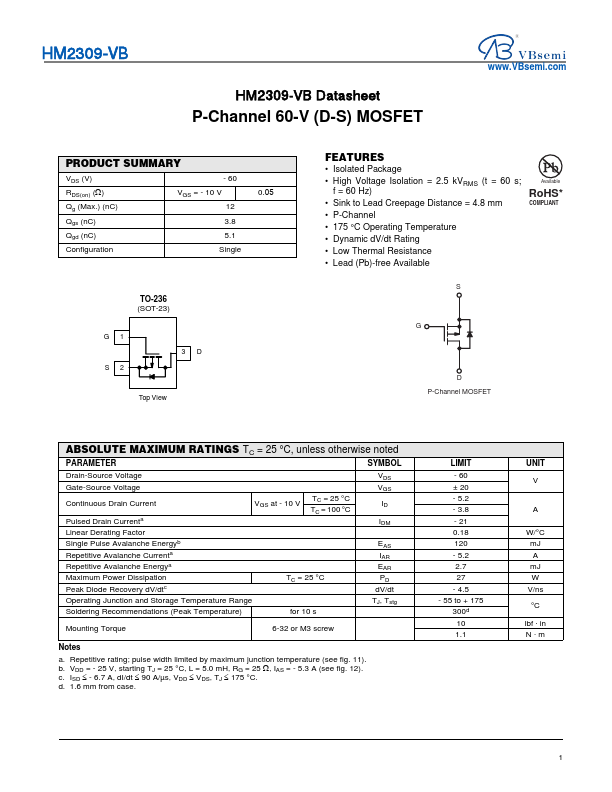

Preview of HM2309 PDF

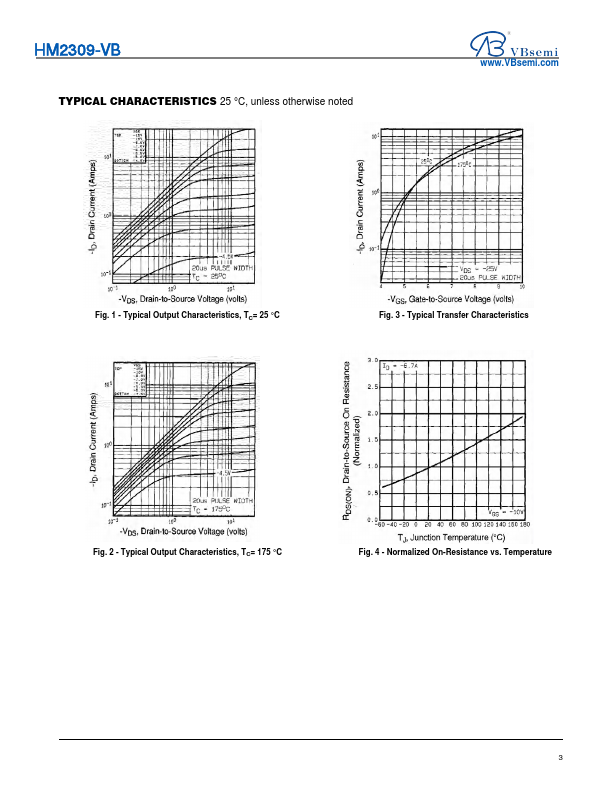

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM2309
Manufacturer
VBsemi
File Size
490.97 KB
Datasheet
HM2309-VBsemi.pdf
Description
P-Channel 60V MOSFET
