K1307 N-Channel 100V MOSFET

VBsemi

Description

K1307 N-Channel 100-V (D-S) MOSFET www.VBsemi.tw PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration 100 VGS = 10 .

📥 Download Datasheet

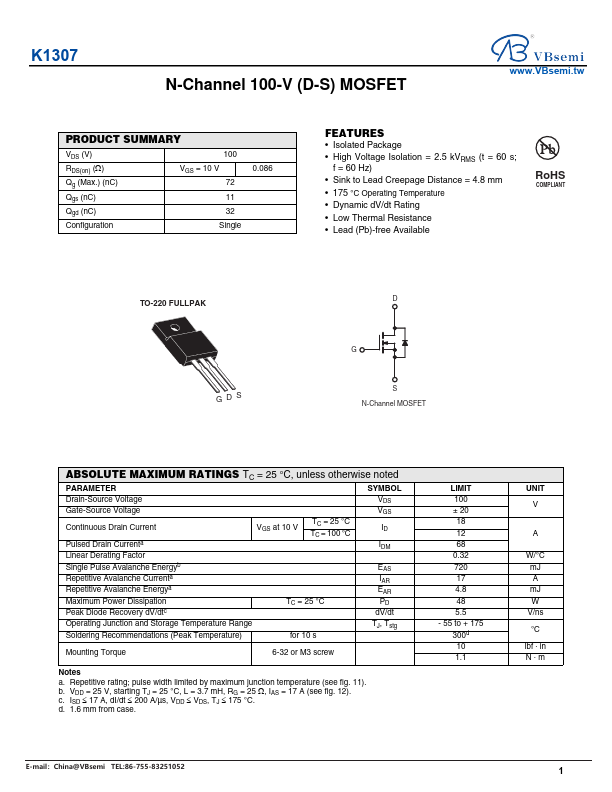

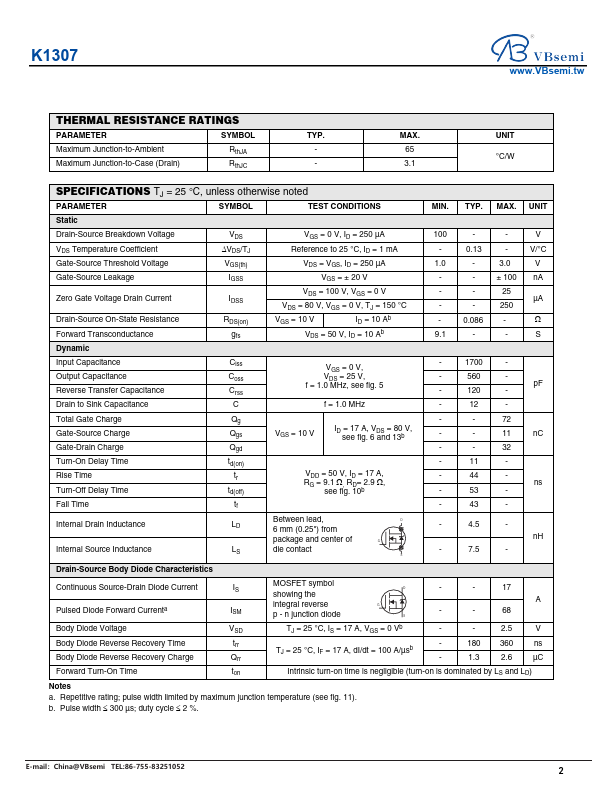

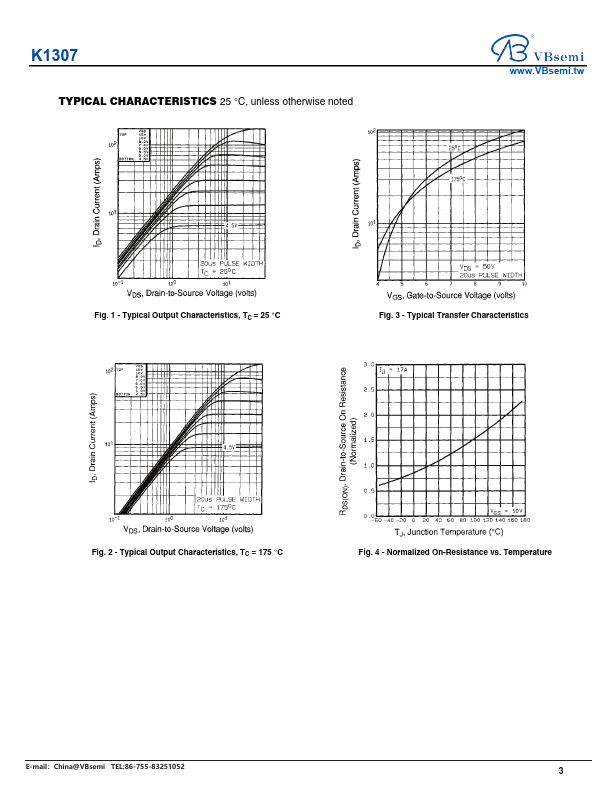

K1307 Datasheet Preview — Preview of K1307 PDF

Datasheet Specifications

Part number: K1307
Manufacturer: VBsemi
File Size: 1.97 MB
Datasheet: K1307-VBsemi.pdf
Description: N-Channel 100V MOSFET

Features

* Isolated Package
* High Voltage Isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz)
* Sink to Lead Creepage Distance = 4.8 mm
* 175 °C Operating Temperature
* Dynamic dV/dt Rating
* Low Thermal Resistance
* Lead (Pb)-free Available RoHS COMPLIANT T
