K2341 Power MOSFET

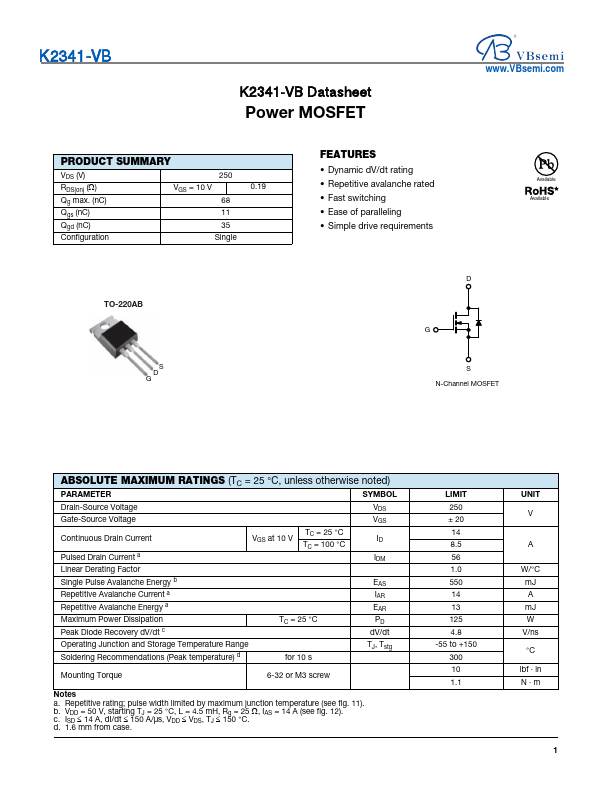

📥 Download Datasheet Datasheet Preview Page 1

Description

K2341-VB K2341-VB Datasheet Power MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () Qg max.(nC) Qgs (nC) Qgd (nC) Configuration 250 VGS .

📥 Download Datasheet

Preview of K2341 PDF

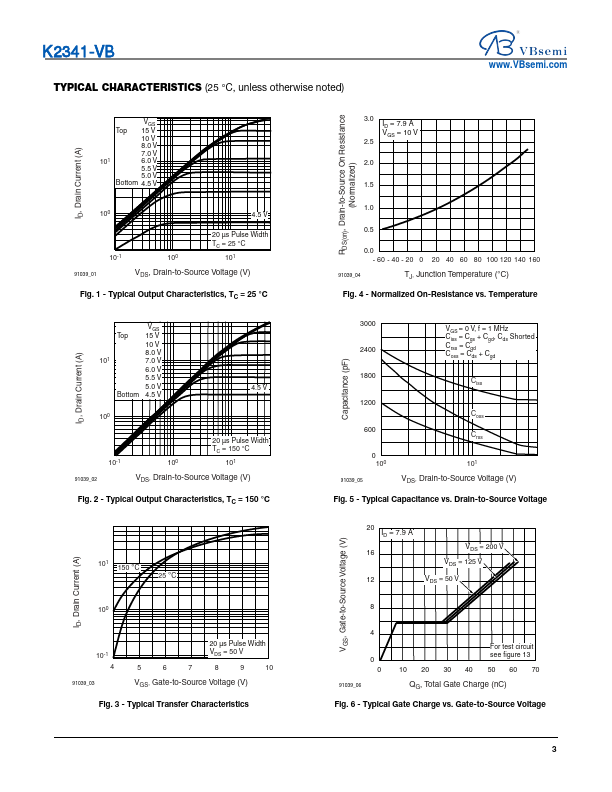

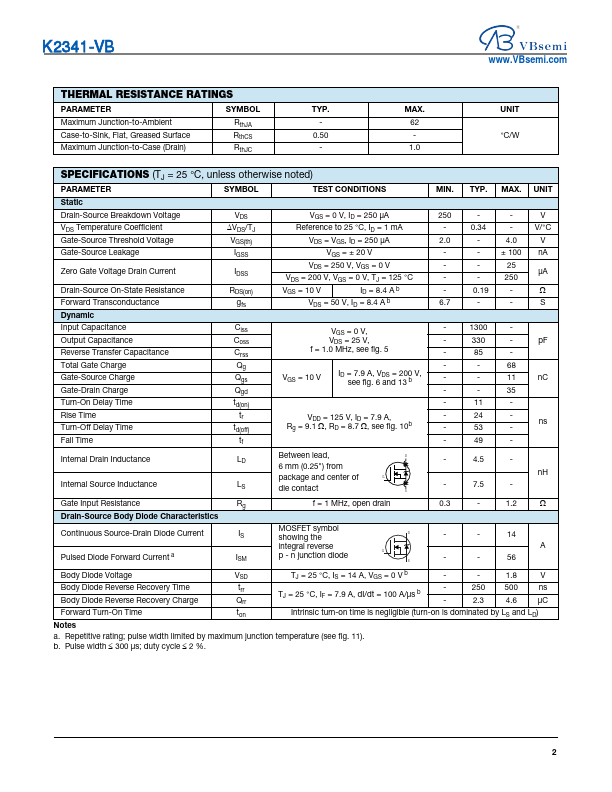

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
K2341
Manufacturer
VBsemi
File Size
230.90 KB
Datasheet
K2341-VBsemi.pdf
Description
Power MOSFET

Features

* Dynamic dV/dt rating
* Repetitive avalanche rated
* Fast switching
* Ease of paralleling
* Simple drive requirements Available Available TO-220AB S D G D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBO
