* Trench Power MOSFET
* 175 °C Junction Temperature
* PWM Optimized
* 100 % Rg Tested
* Compliant to RoHS Directive 2002/95/EC APPLICATIONS
* Primary Side Switch G GD S S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted
K3978-TL-E Datasheet (248.80 KB)
K3978-TL-E
VBsemi
248.80 KB
N-channel 200v mosfet.

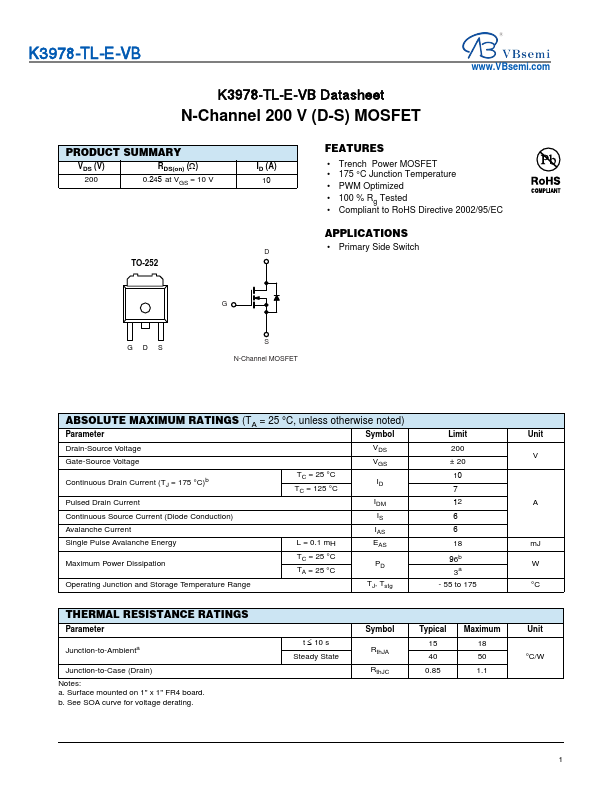

K3978-TL-E-VB K3978-TL-E-VB Datasheet N-Channel 200 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 200 RDS(on) () 0.245 at VGS = 10 V ID.
