K4077-ZK - N-Channel 40V MOSFET

K4077-ZK Description

K4077-ZK-VB K4077-ZK-VB Datasheet N-Channel 4 0-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 40 RDS(on) () 0.012 at VGS = 10 V 0.014 at.

K4077-ZK Features

* Trench Power MOSFET
* 100 % Rg and UIS Tested

K4077-ZK Applications

* D
* OR-ing
* Server
* DC/DC G GDS Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 175 °C) TC = 70 °C TA = 25 °C

📥 Download Datasheet

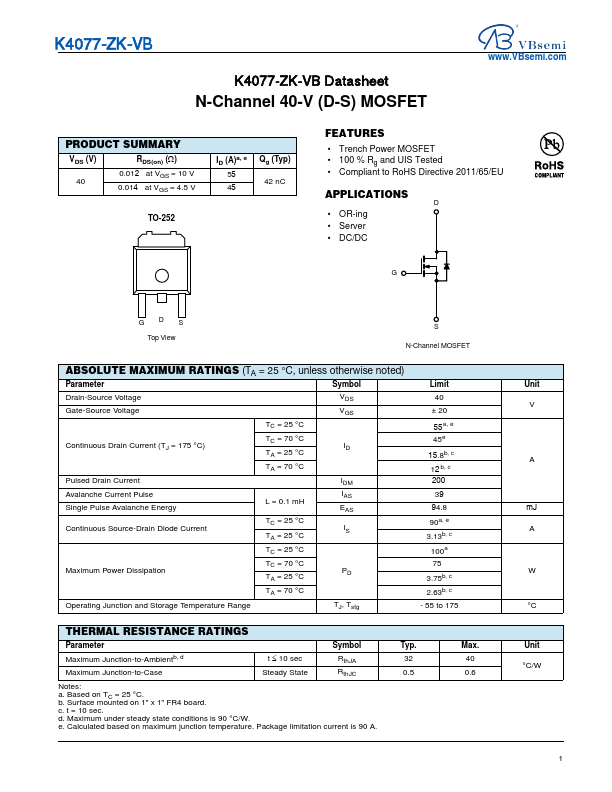

Preview of K4077-ZK PDF

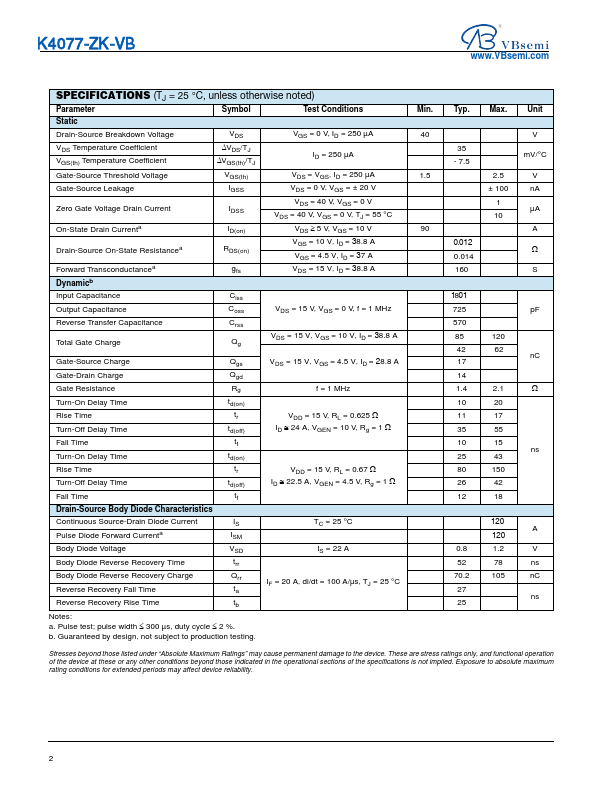

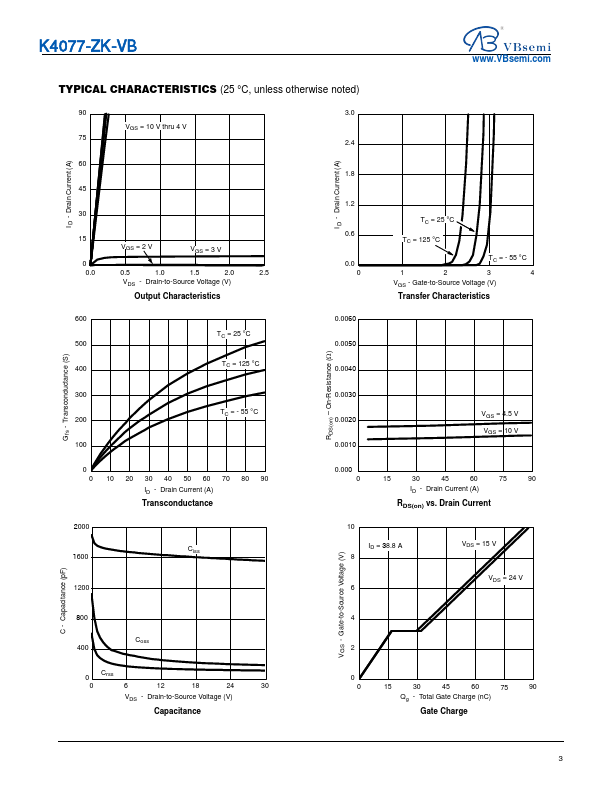

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
K4077-ZK
Manufacturer
VBsemi
File Size
279.73 KB
Datasheet
K4077-ZK-VBsemi.pdf
Description
N-Channel 40V MOSFET
