Part number:
MDU1517RH
Manufacturer:
VBsemi
File Size:
376.66 KB
Description:
N-channel 30v mosfet.

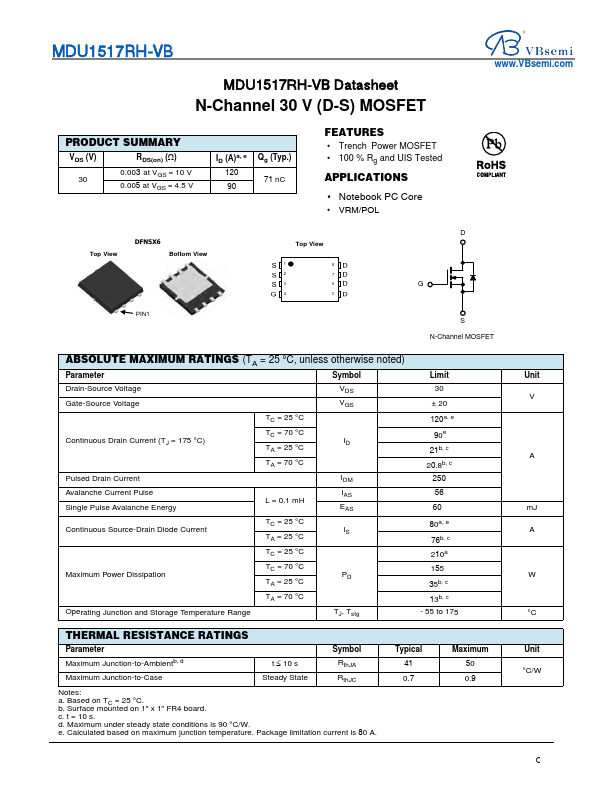

MDU1517RH Datasheet (376.66 KB)
Datasheet Details
MDU1517RH Features
* Trench Power MOSFET
* 100 % Rg and UIS Tested APPLICATIONS
* Notebook PC Core
* VRM/POL Top View DFN5X6 Bottom View PIN1 Top View 1 8 2 7 3 6 4 5 D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol D
MDU1517RH Datasheet (376.66 KB)
Datasheet Details
MDU1517RH
VBsemi
376.66 KB
N-channel 30v mosfet.
