MDU1511RH, MDU1511 - Single N-channel Trench MOSFET

MDU1511RH Description

MDU1511 * Single N-Channel Trench MOSFET 30V ㅊ MDU1511 Single N-channel Trench MOSFET 30V, 100.0A, 2.4mΩ General .
The MDU1511 uses advanced MagnaChip’s MOSFET Technology, which provides high performance in on-state resistance, fast switching performance and excell.

MDU1511RH Features

* VDS = 30V ID = 100A @VGS = 10V RDS(ON) < 2.4 mΩ @VGS = 10V < 3.3 mΩ @VGS = 4.5V 100% UIL Tested 100% Rg Tested D D D D D D D D D S S S G G S S S G PowerDFN56 S Absolute Maximum Ratings (Ta = 25oC) Characteristics Drain-Source Voltage Gate-Source Voltage TC=25 C Continuous Drain

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MDU1511RH, MDU1511. Please refer to the document for exact specifications by model.

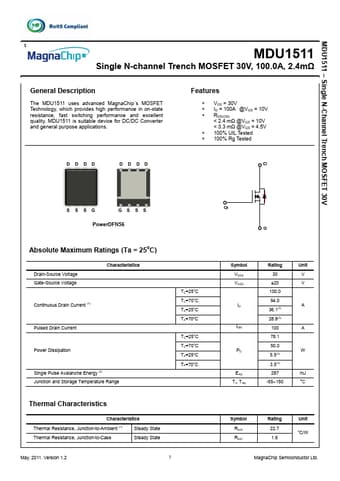

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MDU1511RH, MDU1511
Manufacturer
MagnaChip
File Size
962.35 KB
Datasheet
MDU1511-MagnaChip.pdf
Description
Single N-channel Trench MOSFET
Note
This datasheet PDF includes multiple part numbers: MDU1511RH, MDU1511.
Please refer to the document for exact specifications by model.
