Datasheet Specifications
- Part number
- NTMD3P03R2G
- Manufacturer
- VBsemi
- File Size
- 282.17 KB
- Datasheet
- NTMD3P03R2G-VBsemi.pdf
- Description
- Dual P-Channel 30V MOSFET
Description

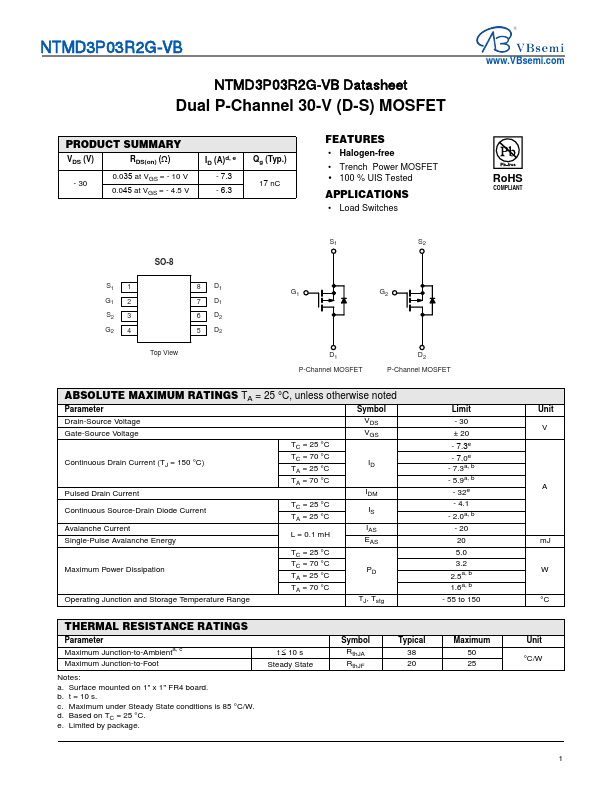

NTMD3P03R2G-VB NTMD3P03R2G-VB Datasheet Dual P-Channel 30-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.035 at VGS = - 10 V 0.045 a.
Features
* Halogen-freeApplications
* Load Switches www. VBsemi. com RoHS COMPLIANT S1 1 G1 2 S2 3 G2 4 SO-8 Top View 8 D1 7 D1 6 D2 5 D2 S1 S2 G1 G2 D1 P-Channel MOSFET D2 P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VNTMD3P03R2G Distributors
