P0780ATF - N-Channel 800V Power MOSFET

Product Overview

VBsemi

📥 Download Datasheet

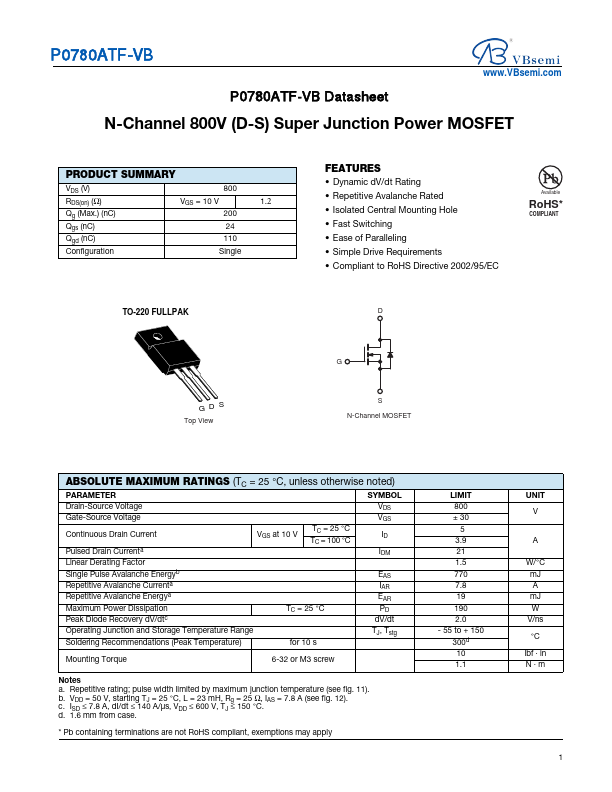

P0780ATF N-Channel 800V Power MOSFET by VBsemi - Datasheet Preview — Datasheet preview – P0780ATF

Datasheet Details

Part number	P0780ATF
Manufacturer	VBsemi
File Size	441.92 KB
Description	N-Channel 800V Power MOSFET
Datasheet	P0780ATF Datasheet

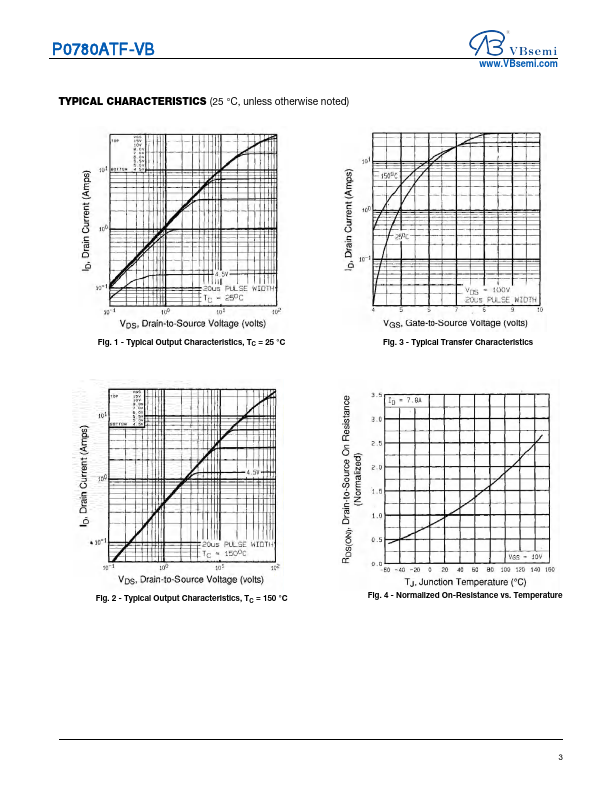

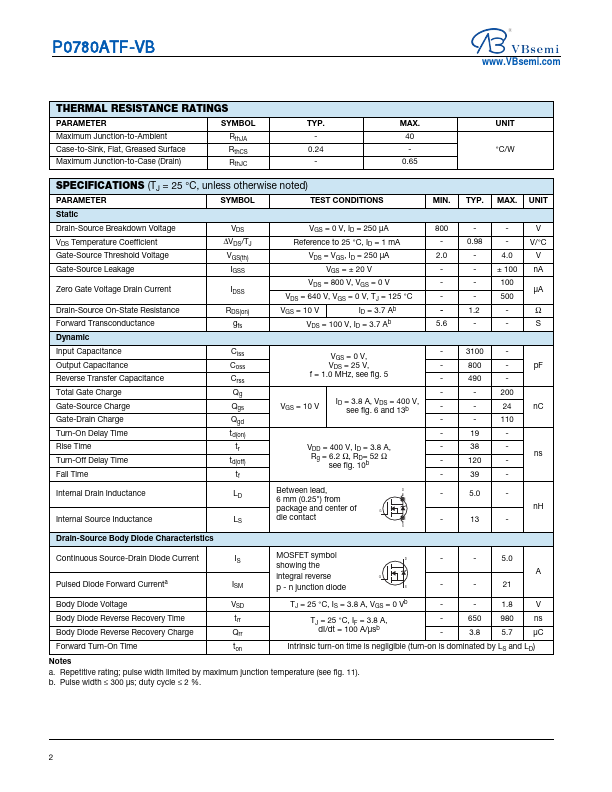

Additional preview pages of the P0780ATF datasheet.

Product details

Features

Dynamic dV/dt Rating.
Repetitive Avalanche Rated.
Isolated Central Mounting Hole.
Fast Switching.
Ease of Paralleling.
Simple Drive Requirements.
Compliant to RoHS Directive 2002/95/EC Available RoHS.
