P0703EV P-Channel MOSFET

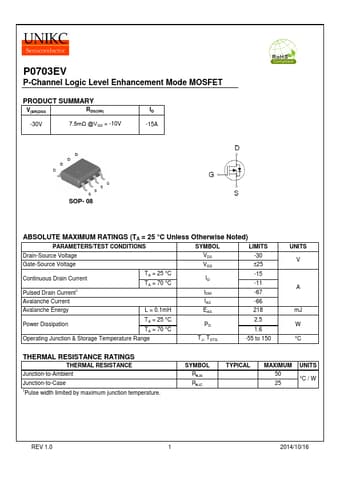

P0703EV P-Channel Logic Level Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) -30V 7.5mΩ @VGS = -10V ID -15A SOP- 08 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage VDS -30 Gate-Source Voltage VGS ±25 Continuous Drain Current Pulsed Drain Current1 TA = 25 °C TA = 70 °C ID IDM -15 -11 -67 Avalanche Current IAS -66 Avalanche Energy L = 0.1mH EAS 218 Power Dissipation TA = 25 °C TA = 70 °C.

P0703EV Datasheet (471.34 KB)
