P0760ZTFS N-Channel MOSFET

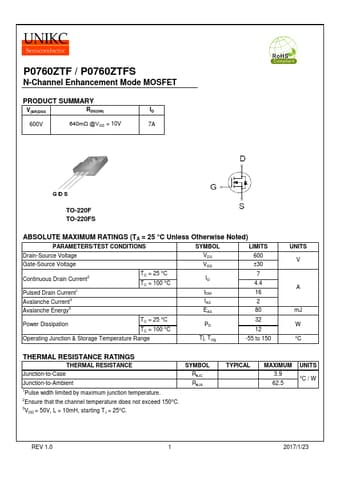

P0760ZTF / P0760ZTFS N-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) ID 600V 640mΩ @VGS = 10V 7A TO-220F TO-220FS ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage VDS 600 Gate-Source Voltage VGS ±30 Continuous Drain Current2 Pulsed Drain Current1 Avalanche Current3 Avalanche Energy3 TC = 25 °C TC = 100 °C ID 7 4.4 IDM 16 IAS 2 EAS 80 Power Dissipation TC = 25 °C PD 32 TC .
