P0765ATF N-Channel MOSFET

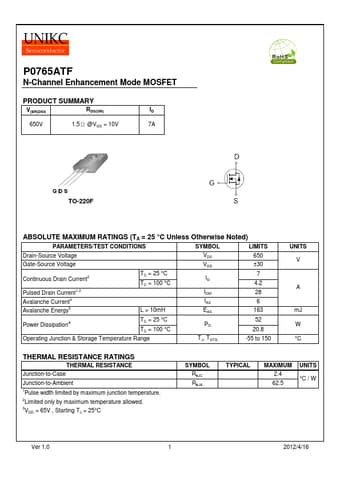

P0765ATF N-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) 650V 1.5Ω @VGS = 10V ID 7A TO-220F ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage VDS 650 Gate-Source Voltage VGS ±30 Continuous Drain Current2 Pulsed Drain Current1,2 Avalanche Current3 Avalanche Energy3 TC = 25 °C TC = 100 °C L = 10mH ID IDM IAS EAS 7 4.2 28 6 163 Power DissipationA TC = 25 °C TC = 100 °C PD 52 20.8 Oper.

P0765ATF Datasheet (409.46 KB)
