P0760ZD N-Channel MOSFET

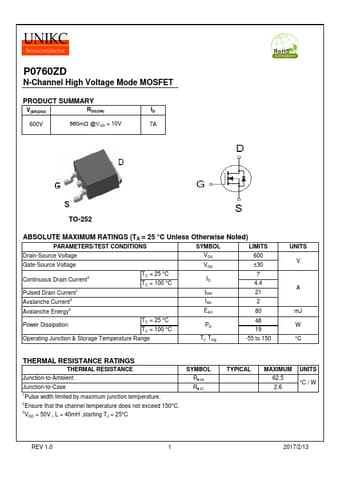

P0760ZD N-Channel High Voltage Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) 600V 660mΩ @VGS = 10V ID 7A TO-252 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage VDS 600 Gate-Source Voltage VGS ±30 Continuous Drain Current2 Pulsed Drain Current1 Avalanche Current3 TC = 25 °C TC = 100 °C ID IDM IAS 7 4.4 21 2 Avalanche Energy3 EAS 80 Power Dissipation TC = 25 °C TC = 100 °C PD 48 19 Operating Junctio.

P0760ZD Datasheet (818.41 KB)
