P0765GTF N-Channel MOSFET

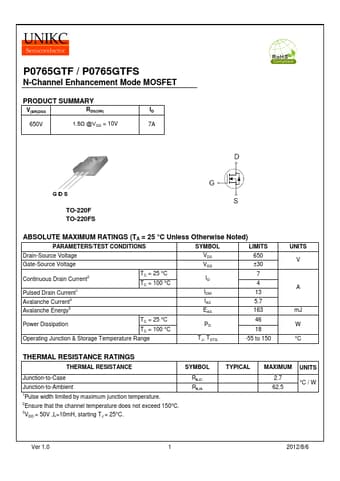

P0765GTF / P0765GTFS N-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) 650V 1.5Ω @VGS = 10V ID 7A TO-220F TO-220FS ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage VDS 650 Gate-Source Voltage VGS ±30 Continuous Drain Current2 Pulsed Drain Current1 Avalanche Current3 Avalanche Energy3 TC = 25 °C TC = 100 °C ID IDM IAS EAS 7 4 13 5.7 163 Power Dissipation TC = 25 °C TC = 100 °C PD 46 1.
