P3710BD, N-Channel 100V MOSFET

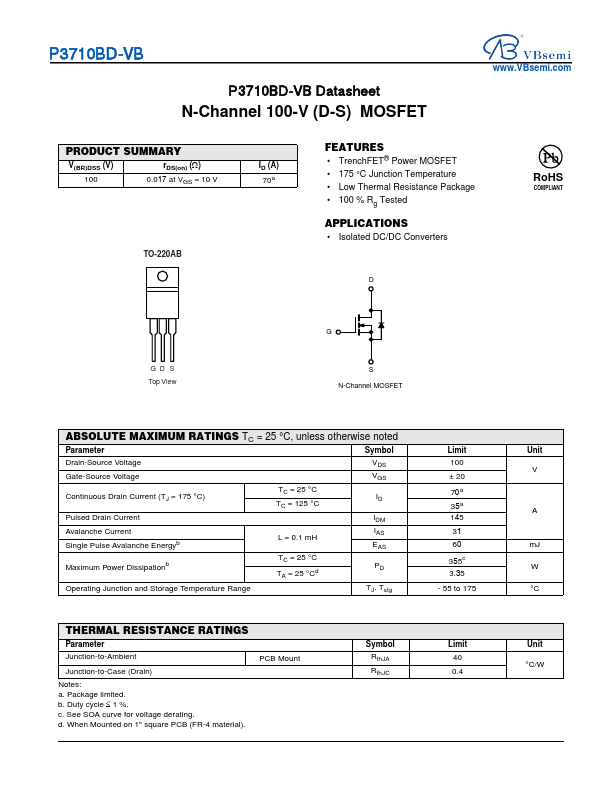

P3710BD-VB P3710BD-VB Datasheet N-Channel 100-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY V(BR)DSS (V) rDS(on) (Ω) 100 0.017 at VGS = 10 V I.

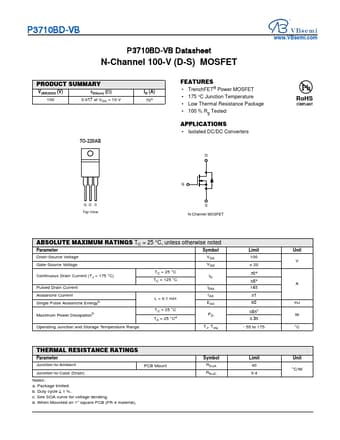

datasheet Preview Page 1 from Datasheet4u.com

P3710BD-VBsemi.pdf

P3710BD Datasheet Preview — Preview of P3710BD PDF

Datasheet Details

Part number:

P3710BD

Manufacturer:

VBsemi

File Size:

216.21 KB

Description:

N-Channel 100V MOSFET

Features

* TrenchFET® Power MOSFET
* 175 °C Junction Temperature
* Low Thermal Resistance Package

Applications

* Isolated DC/DC Converters D RoHS COMPLIANT GD S Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 175 °C) TC = 25 °C TC = 125 °C ID Pulsed
