SCH1430 - N-Channel 30V MOSFET

SCH1430 Description

SCH1430-VB www.VBsemi.com SCH1430-VB Datasheet N-Channel 30 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () 0.023 at VGS = 10 V 30 0.027 at V.

SCH1430 Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* Low On-Resistance
* 100 % Rg Tested

SCH1430 Applications

* DC/DC Converters, High Speed Switching D2 5D G3 4S Top View ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current (t = 300 µs) VDS VGS TC = 25 °C

📥 Download Datasheet

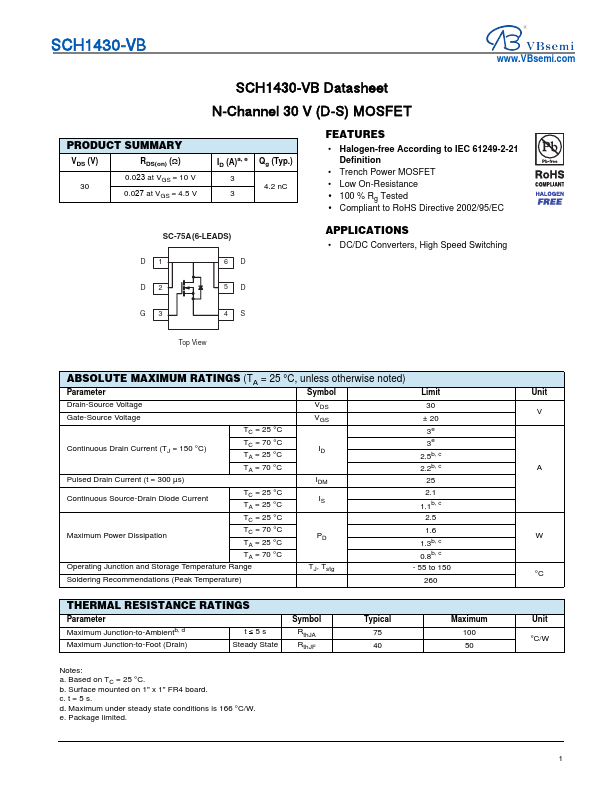

Preview of SCH1430 PDF

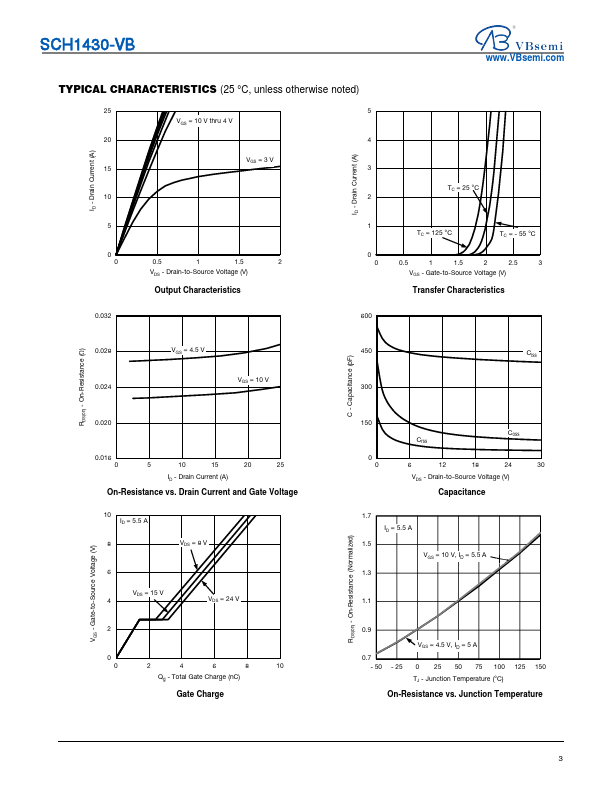

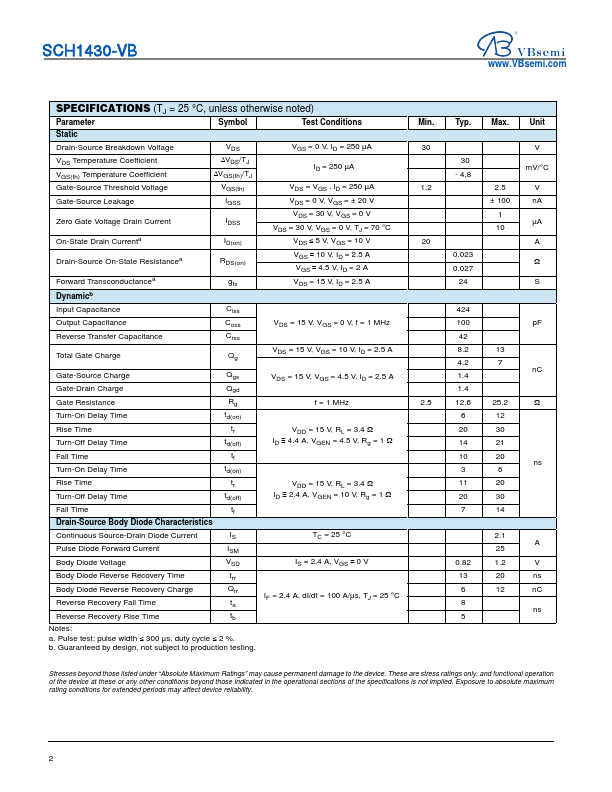

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SCH1430
Manufacturer
VBsemi
File Size
253.62 KB
Datasheet
SCH1430-VBsemi.pdf
Description
N-Channel 30V MOSFET
