SSM9975GM - Dual N-Channel 60V MOSFET

Datasheet Summary

Features

  • Halogen-free According to IEC 61249-2-21 Definition.
  • Trench Power MOSFET.
  • 100 % UIS Tested.
  • 100 % Rg Tested.
  • Compliant to RoHS Directive 2002/95/EC S1 1 G1 2 S2 3 G2 4 SO-8 8 D1 7 D1 6 D2 5 D2.

📥 Download Datasheet

Datasheet preview – SSM9975GM

Datasheet Details

Part number SSM9975GM
Manufacturer VBsemi
File Size 270.31 KB
Description Dual N-Channel 60V MOSFET
Datasheet download datasheet SSM9975GM Datasheet
Additional preview pages of the SSM9975GM datasheet.

📁 Similar Datasheet

  • SSM9975GM - Dual N-channel Enhancement-mode Power MOSFET (Silicon Standard)
  • SSM9975M - Dual N-channel Enhancement-mode Power MOSFET (Silicon Standard)
  • SSM9971 - N-Channel Enhancement Mode Power MosFET (SeCoS)
  • SSM9971GD - Dual N-channel Enhancement-mode Power MOSFETs (Silicon Standard)
  • SSM9971GH - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Silicon Standard)
  • SSM9971GH - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Silicon Standard)
  • SSM9971GJ - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Silicon Standard)
  • SSM9971GJ - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Silicon Standard)
  • SSM9971GM - Dual N-channel Enhancement-mode Power MOSFETs (Silicon Standard)
  • SSM9972GI - N-channel Enhancement-mode Power MOSFET (Silicon Standard)
Other Datasheets by VBsemi

Full PDF Text Transcription

Click to expand full text

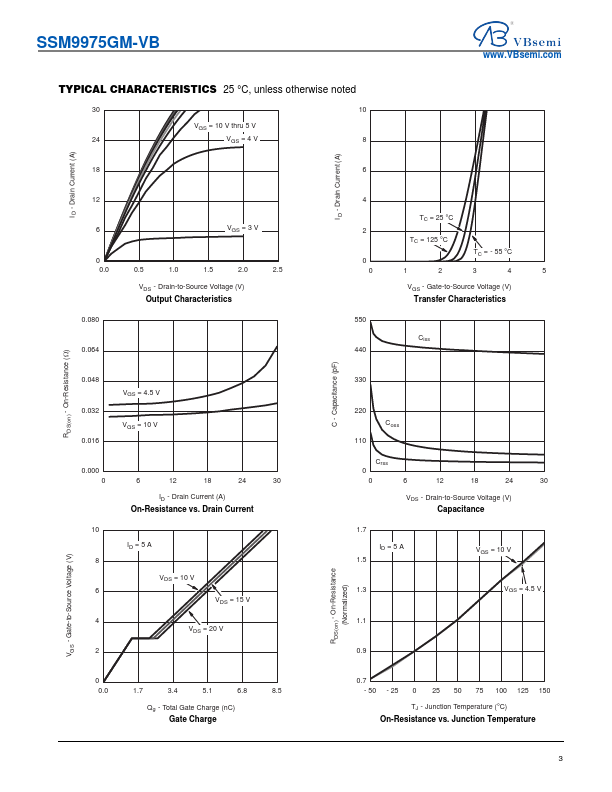

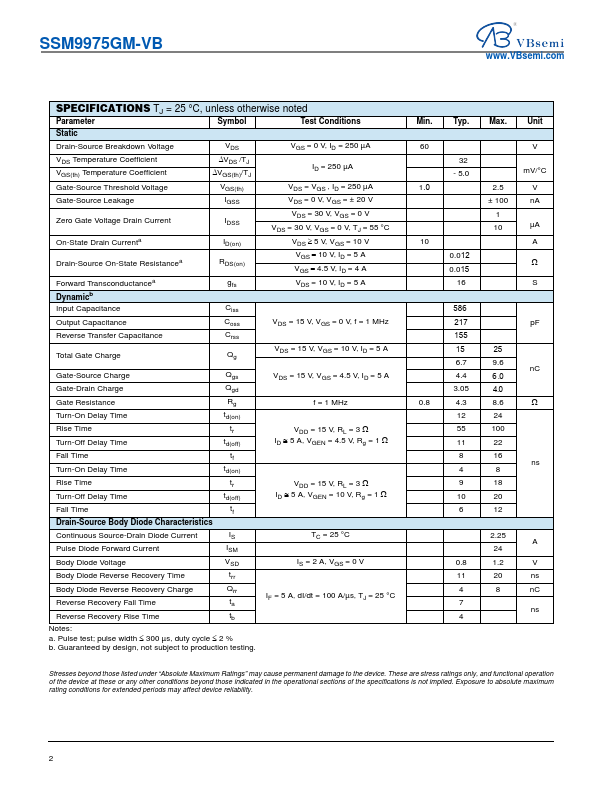

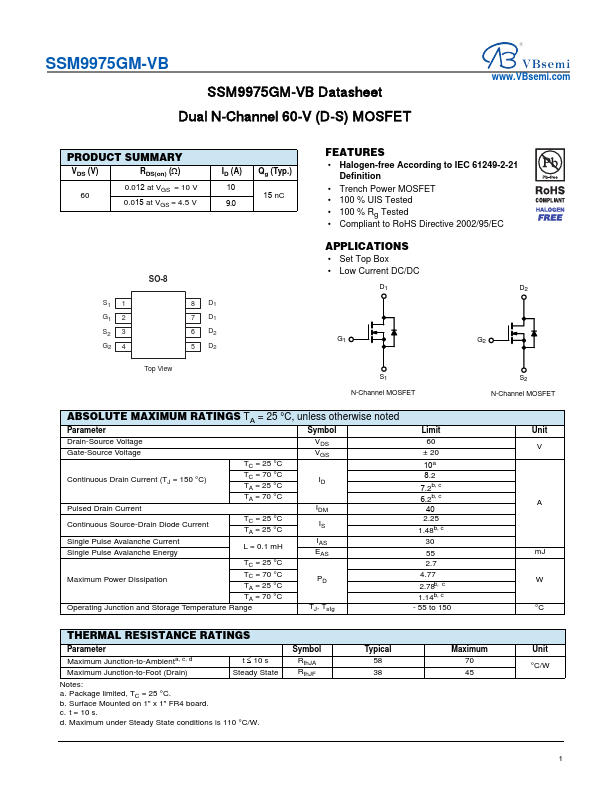

SSM9975GM-VB SSM9975GM-VB Datasheet Dual N-Channel 60-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.012 at VGS = 10 V 60 0.015 at VGS = 4.5 V ID (A) 10 9.0 Qg (Typ.) 15 nC FEATURES • Halogen-free According to IEC 61249-2-21 Definition • Trench Power MOSFET • 100 % UIS Tested • 100 % Rg Tested • Compliant to RoHS Directive 2002/95/EC S1 1 G1 2 S2 3 G2 4 SO-8 8 D1 7 D1 6 D2 5 D2 APPLICATIONS • Set Top Box • Low Current DC/DC D1 G1 D2 G2 Top View S1 N-Channel MOSFET S2 N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 60 V VGS ± 20 TC = 25 °C 10a Continuous Drain Current (TJ = 150 °C) TC = 70 °C TA = 25 °C ID 8.2 7.
