STM4439A - P-Channel 30V MOSFET

Datasheet Summary

Features

  • Halogen-free.
  • Trench Power MOSFET.
  • 100 % Rg Tested.
  • 100 % UIS Tested.

📥 Download Datasheet

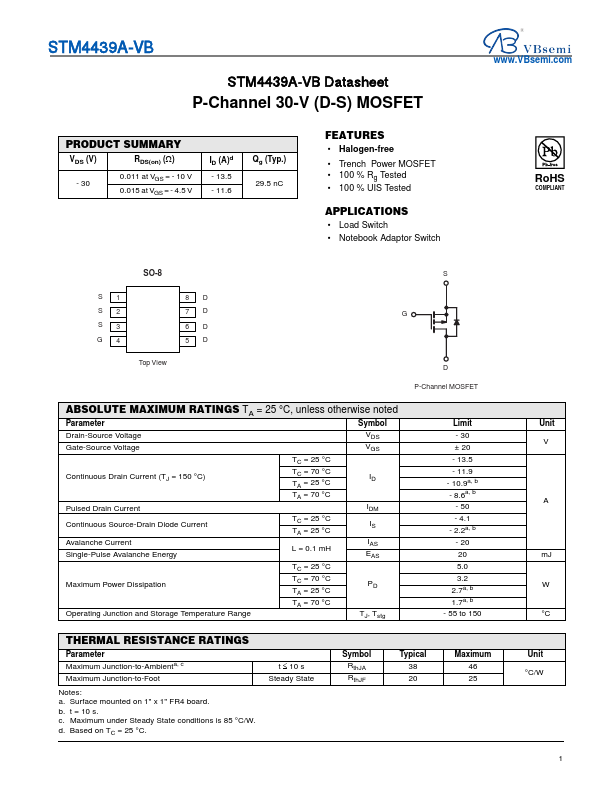

Datasheet preview – STM4439A

Datasheet Details

Part number STM4439A
Manufacturer VBsemi
File Size 181.30 KB
Description P-Channel 30V MOSFET
Datasheet download datasheet STM4439A Datasheet

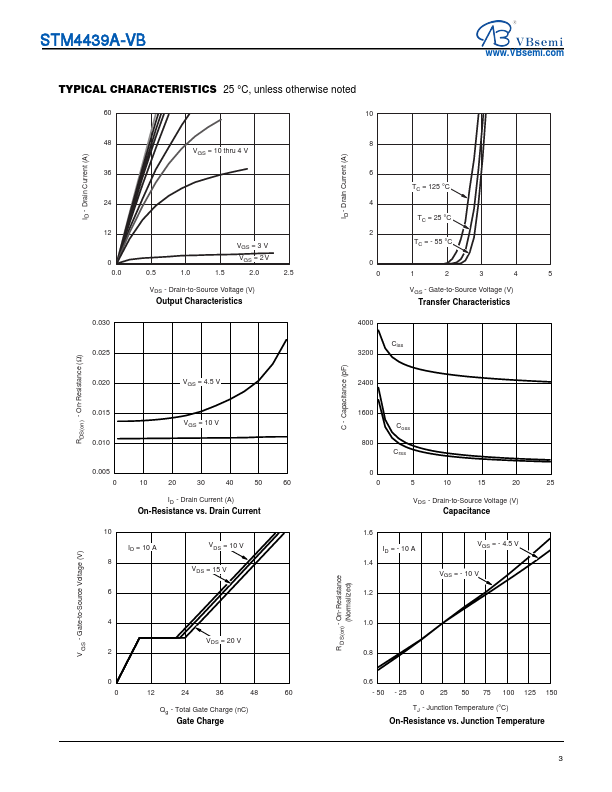

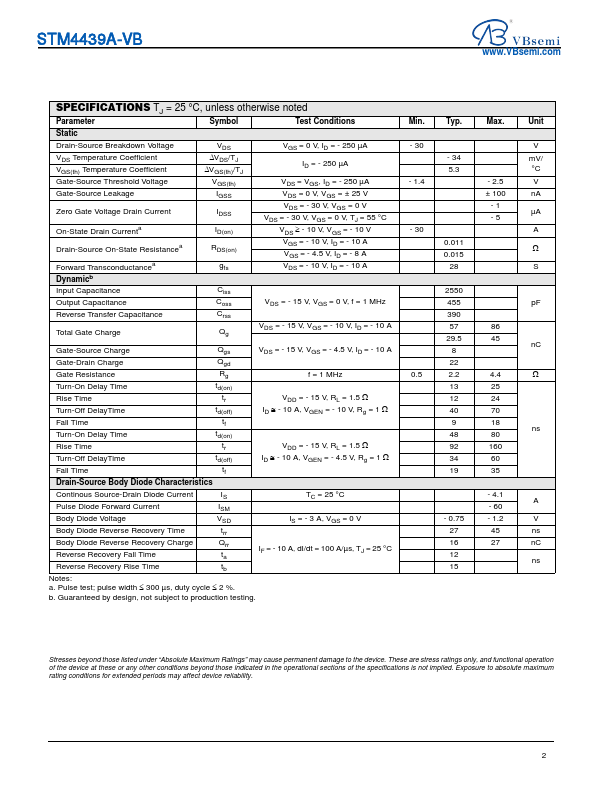

Additional preview pages of the STM4439A datasheet.

📁 Similar Datasheet

  • STM4439A - P-Channel Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STM4439 - P-Channel Enhancement Mode MOSFET (SamHop Microelectronics)
  • STM4431 - P-Channel Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STM4432 - N-Channel MOSFET (SamHop Microelectronics)
  • STM4433 - P-Channel Enhancement Mode MOSFET (SamHop Microelectronics)
  • STM4433A - P-Channel Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STM4435 - P-Channel Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STM4436 - N-Channel Logic Level Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STM4437 - P-Channel Enhancement Mode MOSFET (SamHop Microelectronics)
  • STM4437A - P-Channel Enhancement Mode Field Effect Transistor (SamHop Microelectronics)
Other Datasheets by VBsemi

Full PDF Text Transcription

Click to expand full text
STM4439A-VB STM4439A-VB Datasheet P-Channel 30-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.011 at VGS = - 10 V 0.015 at VGS = - 4.5 V ID (A)d - 13.5 - 11.6 Qg (Typ.) 29.5 nC FEATURES • Halogen-free • Trench Power MOSFET • 100 % Rg Tested • 100 % UIS Tested APPLICATIONS • Load Switch • Notebook Adaptor Switch www.VBsemi.
