* Halogen-free
* Trench Power MOSFET
* 100 % Rg Tested
* 100 % UIS Tested APPLICATIONS
* Load Switch
* Notebook Adaptor Switch www.VBsemi.com RoHS COMPLIANT SO-8 S S1 8D S2 7D G S3 6D G4 5D Top View D P-Channel MOSFET ABSOLUTE MAXIMUM RA
STM4639T Datasheet (181.30 KB)
STM4639T
VBsemi
181.30 KB
P-channel 30v mosfet.
STM4639T-VB

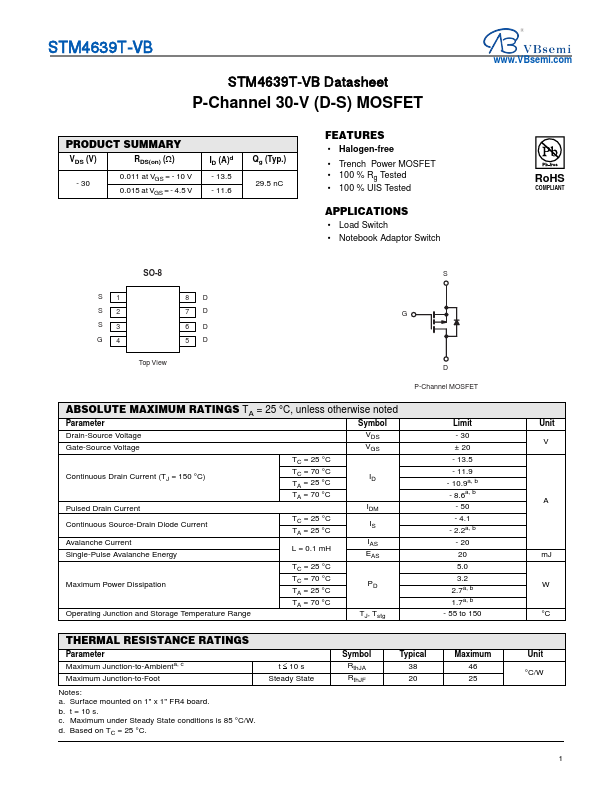

STM4639T-VB Datasheet
P-Channel 30-V (D-S) MOSFET
PRODUCT SUMMARY
VDS (V)
RDS(on) (Ω)
- 30
0.011 at VGS = - 10 V
0.015 at VGS = - 4.
