* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % Rg Tested
* Compliant to RoHS Directive 2002/95/EC APPLICATIONS
* Portable Devices - Load Switch - Battery Switch - Charger Switch ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless
STM6375
VBsemi
252.09 KB
P-channel 20v mosfet.

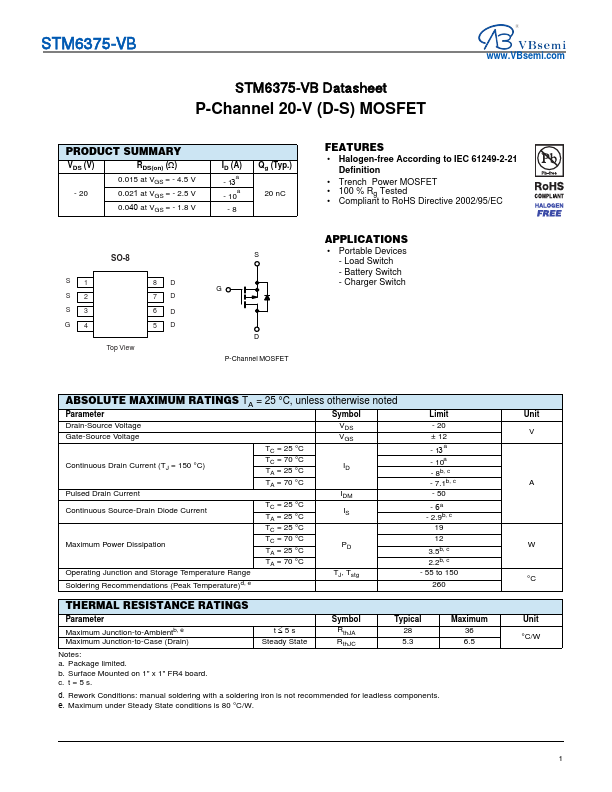

STM6375-VB STM6375-VB Datasheet P-Channel 20-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.015 at VGS = - 4.5 V - 20 0.0.
