STM6316

DVD Optical Disc

STM6316 Features

* s DVD-video: DVD-R, DVD+R, DVD+RW and DVD-RW playback up to 2X s CD-DA: www.DataSheet4U.com CD-R and CR-RW playback; SA-CD; video-CD up to 6X ST7 microcontroller Dedicated DSP s Full servo digital processing q q s Analog interface connecting to the photodetector on all popular DVD pick-ups s Dual

STM6316 General Description

The STm6316 chip based on leading-edge 0.18 micron CMOS production technology integrates all the functions required in the DVD optical interface including analog pre-processing, servo control, channel decoding and error correction. Optimized for use with STMicroelectronics OMEGA DVD audio and video .

STM6316 Datasheet (128.34 KB)

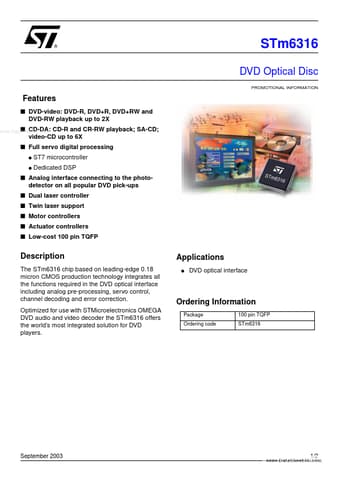

Preview of STM6316 PDF

Datasheet Details

Part number:

STM6316

Manufacturer:

STMicroelectronics ↗

File Size:

128.34 KB

Description:

Dvd optical disc.
