STM6321

5-pin supervisor

STM6321 Features

* Precision VCC monitoring of 5, 3.3, 3, or 2.5 V power supplies

* RST outputs (active low, push-pull or open drain)

* RST outputs (active high, push-pull)

* Reset pulse width of 1.4 ms, 200 ms and 240 ms (typ.)

* Watchdog timeout period of 1.6 s (typ.)

STM6321 General Description

The STM6xxx supervisors are self-contained devices which provide microprocessor supervisory functions. A precision voltage reference and comparator monitors the VCC input for an out-of-tolerance condition. When an invalid VCC condition occurs, the reset output (RST) is forced low (or high in the cas.

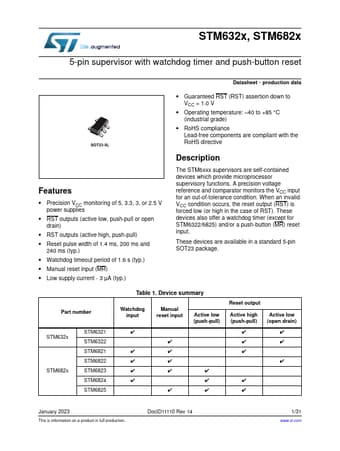

STM6321 Datasheet (560.58 KB)

Preview of STM6321 PDF

Datasheet Details

Part number:

STM6321

Manufacturer:

STMicroelectronics ↗

File Size:

560.58 KB

Description:

5-pin supervisor.
