STM6502, STM6503 (STM6502 - STM6505) Dual push-button smart reset

ST Microelectronics

Description

STM6502, STM6503 STM6504, STM6505 Dual push-button smart reset .

📥 Download Datasheet

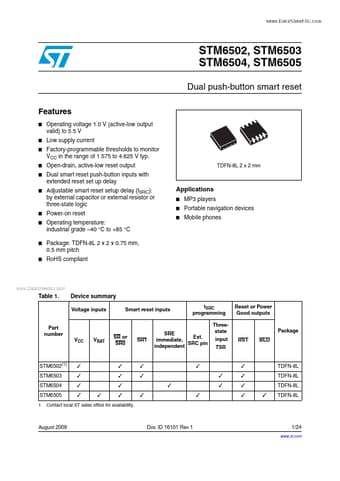

STM6502 Datasheet Preview — This datasheet PDF includes multiple part numbers: STM6502, STM6503. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STM6502, STM6503
Manufacturer: STMicroelectronics ↗
File Size: 344.36 KB
Datasheet: STM6503_STMicroelectronics.pdf
Description: (STM6502 - STM6505) Dual push-button smart reset
Note: This datasheet PDF includes multiple part numbers: STM6502, STM6503.
Please refer to the document for exact specifications by model.

Features

* Operating voltage 1.0 V (active-low output valid) to 5.5 V Low supply current Factory-programmable thresholds to monitor VCC in the range of 1.575 to 4.625 V typ. Open-drain, active-low reset output Dual smart reset push-button inputs with extended reset set up d

Applications

* MP3 players Portable navigation devices Mobile phones
* www. DataSheet4U. com Table 1. Device summary Voltage inputs Smart reset inputs tSRC programming Threestate input TSR RST BLD Reset or Power Good outputs Part number VCC VBAT SR or SR0 SR1 SRE Ext
