STM6315

Open Drain Microprocessor Reset

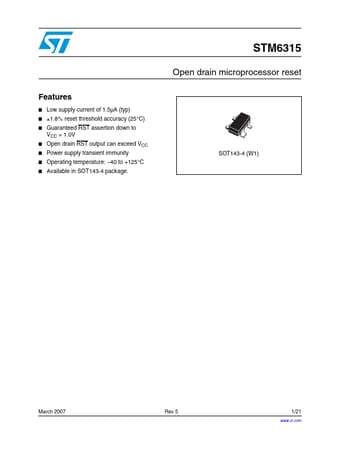

STM6315 Features

* Low supply current of 1.5µA (typ)

* ±1.8% reset threshold accuracy (25°C)

* Guaranteed RST assertion down to VCC = 1.0V

* Open drain RST output can exceed VCC

* Power supply transient immunity

* Operating temperature:

* 40 to +125°C

* Available in SOT143-4 packag

STM6315 General Description

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.1 Reset output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..

STM6315 Datasheet (177.45 KB)

Preview of STM6315 PDF

Datasheet Details

Part number:

STM6315

Manufacturer:

STMicroelectronics ↗

File Size:

177.45 KB

Description:

Open drain microprocessor reset.
