SW6N70DB N-Channel 600V Power MOSFET

VBsemi

Description

SW6N70DB-VB TO252 SW6N70DB-VB TO252 Datasheet N-Channel 600V (D-S) Super Junction Power MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) at TJ max.RD.

📥 Download Datasheet

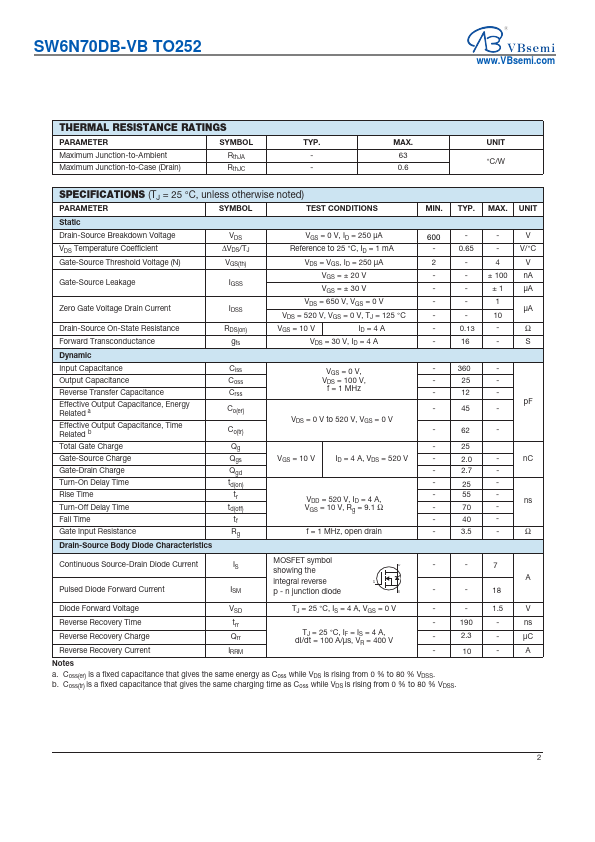

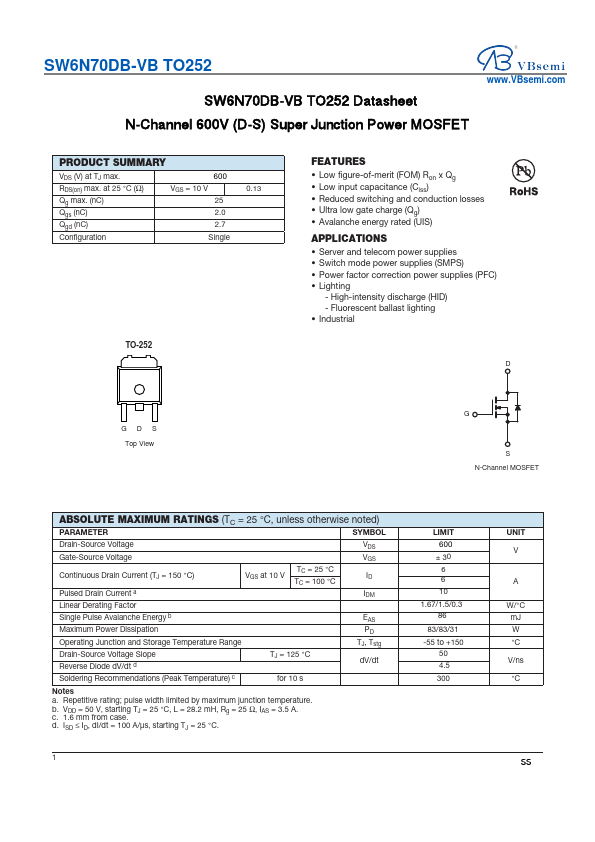

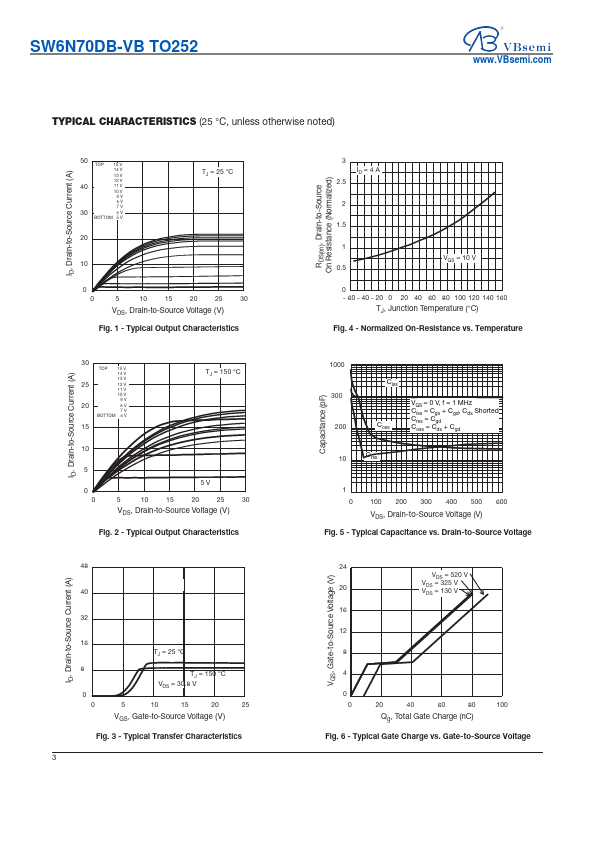

SW6N70DB Datasheet Preview — Preview of SW6N70DB PDF

Datasheet Specifications

Part number: SW6N70DB
Manufacturer: VBsemi
File Size: 322.22 KB
Datasheet: SW6N70DB-VBsemi.pdf
Description: N-Channel 600V Power MOSFET

Features

* Low figure-of-merit (FOM) Ron x Qg
* Low input capacitance (Ciss)
* Reduced switching and conduction losses
* Ultra low gate charge (Qg)

Applications

* Server and telecom power supplies
* Switch mode power supplies (SMPS)
* Power factor correction power supplies (PFC)
* Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
* Industrial D GDS Top View G S N-Channel MOSFET ABSOLUTE MAXIM
