SW6N90 - N-channel TO-262 MOSFET

SEMIPOWER

📥 Download Datasheet

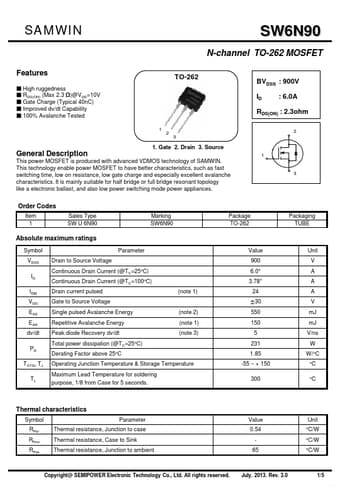

SW6N90 Datasheet Preview — Preview of SW6N90 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SW6N90
Manufacturer	SEMIPOWER
File Size	415.13 KB
Description	N-channel TO-262 MOSFET
Datasheet	SW6N90-SEMIPOWER.pdf

SW6N90 Product details

Description

This power MOSFET is produced with advanced VDMOS technology of SAMWIN.

Features

High ruggedness.
RDS(ON) (Max 2.3 Ω)@VGS=10V.
Gate Charge (Typical 40nC).
Improved dv/dt Capability.
100% Avalanche Tested 1 2 BVDSS : 900V ID : 6.0A RDS(ON) : 2.3ohm 2 3 1. Gate 2. Drain 3. Source General.
