SW6N70DB Datasheet - Samwin

SW6N70DB N-channel MOSFET

This power MOSFET is produced with advanced technology of SAMWIN. This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics. BVDSS : 700V ID : 6A RDS(ON) : 1.4Ω 2 .

SW6N70DB-Samwin.pdf

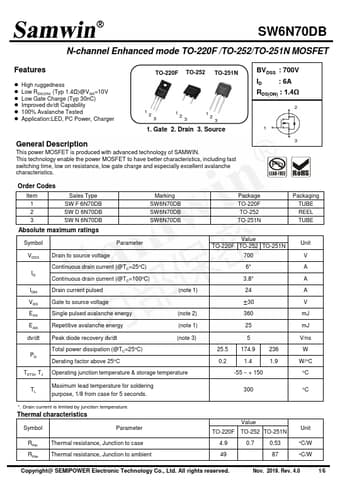

Preview of SW6N70DB PDF
SW6N70DB Datasheet Preview Page 2 SW6N70DB Datasheet Preview Page 3

Datasheet Details

Part number:

SW6N70DB

Manufacturer:

Samwin

File Size:

948.82 KB

Description:

N-channel mosfet.
