SW6201 Datasheet - ISMARTWARE

Total Solution Include PD

SW6201 Features

* Switching Charger

* Current up to 5A , Efficiency up to 96%

* Support 4.2/4.35/4.4/4.5V Battery Voltage

* Support JEITA

* Thermal Regulation

* Synchronous Boost

* Power up to 18W, Efficiency up to 95%

* Load Insert Detect and Light Load Detect

* Support

SW6201 General Description

The SW6201 is a highly integrated power management IC for fast charge power bank application, and supports A+A+B+C ports. It integrates 5A switching charger, 18W synchronous boost, PPS/PD/QC/AFC/FCP/PE/SFCP fast charge protocol, fuel gauge, segment/led driver and power controller. With simple exter.

SW6201 Datasheet (1.32 MB)

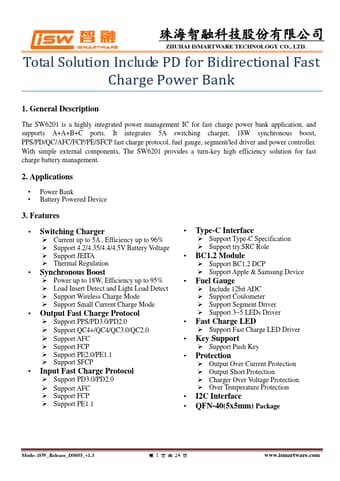

SW6201 Datasheet Preview — Preview of SW6201 PDF

Datasheet Details

Part number:

SW6201

Manufacturer:

ISMARTWARE

File Size:

1.32 MB

Description:

Total solution include pd.
