SW6206 - Bidirectional Fast Charge Power Bank

Datasheet Summary

Description

The SW6206 is a highly integrated power management IC for fast charge power bank application, and supports A+A+B+C+L five ports.

It integrates 5A switching charger, 22.5W synchronous boost, PPS/PD/QC/AFC/FCP/SCP/PE/SFCP fast charge protocol, fuel gauge, led driver and power controller.

Features

  • Switching Charger.
  • Current up to 5A , Efficiency up to 96%.
  • Support 4.2/4.35/4.4/4.5V Battery Voltage.
  • Support JEITA.
  • Thermal Regulation.
  • Synchronous Boost.
  • Power up to 22.5W, Efficiency up to 95%.
  • Load Insert Detect and Light Load Detect.
  • Support Wireless Charge Mode.
  • Support Small Current Charge Mode.
  • Output Fast Charge Protocol.
  • Support PPS/PD3.0/PD2.0.
  • Support QC4+/QC4/QC3.0/.

📥 Download Datasheet

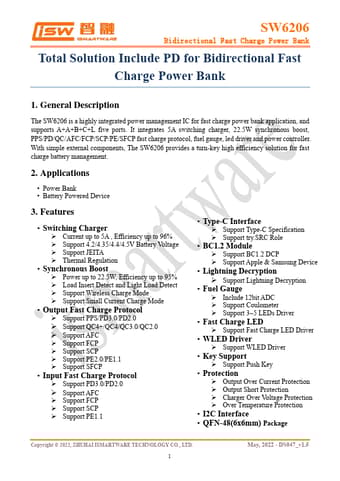

Datasheet preview – SW6206

Datasheet Details

Part number SW6206
Manufacturer ISMARTWARE
File Size 806.11 KB
Description Bidirectional Fast Charge Power Bank
Datasheet download datasheet SW6206 Datasheet
Additional preview pages of the SW6206 datasheet.

📁 Similar Datasheet

  • SW601Q - N-Channel MOSFET (SEMIPOWER)
  • SW60N06T - MOSFET (SEMIPOWER)
  • SW6100 - BATTERY (SUNNYWAY)
  • SW630 - N-Channel MOSFET (Samwin)
  • SW630A - MOSFET (SEMIPOWER)
  • SW634 - N-Channel MOSFET (Samwin)
  • SW640 - N-Channel MOSFET (Samwin)
  • SW640 - Battery (Shenzhen)
  • SW65-0003 - GaAs SP8T Reflective Switch (Tyco Electronics)
  • SW65-0014 - GaAs SPST Absorptive Switch (Tyco Electronics)
Other Datasheets by ISMARTWARE
  • SW6201 - Total Solution Include PD
  • SW6208 - highly integrated power management
  • SW6236 - AACC Four-Port Multi-Protocol Portable Power Bank SOC
  • SW6005 - 5V/2.4A Type-C Solution Power Bank
  • SW6008 - 5V/3.1A Type-C Solution Power Bank
  • SW608 - 5V 3A single-chip Type-C power bank solution
  • SW6106 - Bidirectional Fast Charge Power Bank
  • SW6301V - Single-C port multi-protocol step-up power bank SOC

Full PDF Text Transcription

Click to expand full text
SW6206 Bidirectional Fast Charge Power Bank Total Solution Include PD for Bidirectional Fast Charge Power Bank 1. General Description The SW6206 is a highly integrated power management IC for fast charge power bank application, and supports A+A+B+C+L five ports. It integrates 5A switching charger, 22.5W synchronous boost, PPS/PD/QC/AFC/FCP/SCP/PE/SFCP fast charge protocol, fuel gauge, led driver and power controller. With simple external components, The SW6206 provides a turn-key high efficiency solution for fast charge battery management. 2. Applications • Power Bank • Battery Powered Device 3. Features • Switching Charger ➢ Current up to 5A , Efficiency up to 96% ➢ Support 4.2/4.35/4.4/4.5V Battery Voltage ➢ Support JEITA ➢ Thermal Regulation • Synchronous Boost ➢ Power up to 22.
