VBBD4290, Dual P-Channel MOSFET

VBBD4290 Dual P-Channel 20 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.083 at VGS = - 4.5 V - 20 0.100 at VGS = - 2.5 .

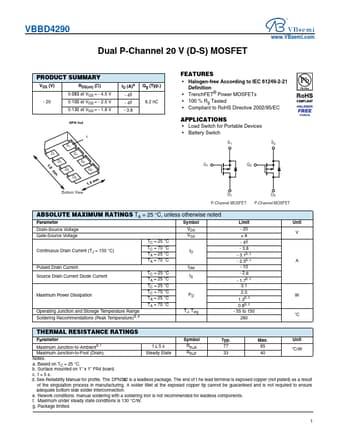

datasheet Preview Page 1 from Datasheet4u.com

VBBD4290-VBsemi.pdf

VBBD4290 Datasheet Preview — Preview of VBBD4290 PDF

Datasheet Details

Part number:

VBBD4290

Manufacturer:

VBsemi

File Size:

359.04 KB

Description:

Dual P-Channel MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFETs
* 100 % Rg Tested

Applications

* Load Switch for Portable Devices
* Battery Switch S1 S2 G1 G2 Bottom View D1 P-Channel MOSFET D2 P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS - 20 VGS ±8 V TC
