* TrenchFET® power MOSFET APPLICATIONS
* Load switches - Notebook PC D 1.9 mm 1 3.0 mm Top View 1 4 3 D 2 D D G Bottom View G N-Channel MOSFET S www.VBsemi.com ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-Source Voltage Gate-Sou

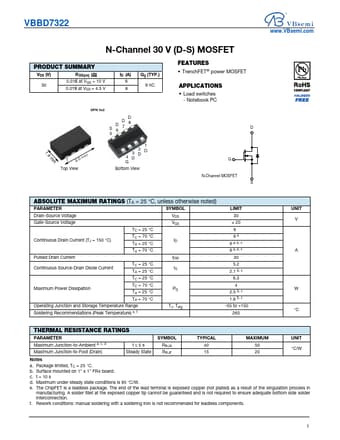

VBBD7322 Datasheet (325.89 KB)
VBBD7322
VBsemi
325.89 KB
N-channel mosfet.
VBBD7322
N-Channel 30 V (D-S) MOSFET
PRODUCT SUMMARY
VDS (V) 30
R DS(on) (Ω) 0.016 at VGS = 10 V 0.019 at VGS = 4.5 V
ID (A) 9 8
Qg (TYP.) 9 nC
.
