VBL1204N N-Channel 200V MOSFET

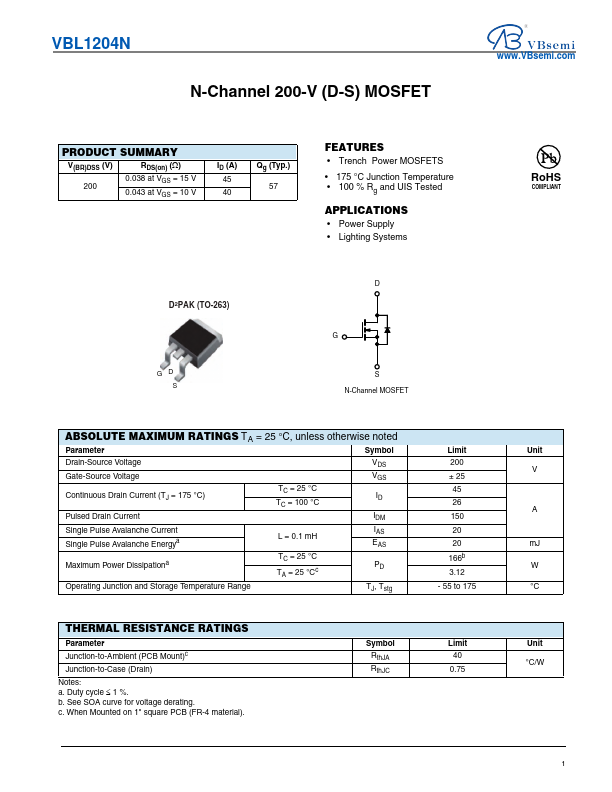

VBL1204N N-Channel 200-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY V(BR)DSS (V) RDS(on) (Ω) 200 0.038 at VGS = 15 V 0.043 at VGS = 10 V ID .

VBL1204N-VBsemi.pdf

VBL1204N Datasheet Preview — Preview of VBL1204N PDF

Datasheet Details

Part number:

VBL1204N

Manufacturer:

VBsemi

File Size:

257.68 KB

Description:

N-Channel 200V MOSFET

Features

* Trench Power MOSFETS
* 175 °C Junction Temperature

Applications

* Power Supply
* Lighting Systems D2PAK (TO-263) GD S D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 175 °C) TC = 25 °C TC = 100 °C ID Pul
