VBL1303

N-Channel MOSFET

VBsemi

Download Datasheet (368.82 KB)

VBL1303 Datasheet Preview — Preview of VBL1303 PDF Datasheet

Datasheet Details

Part number:

VBL1303

Manufacturer:

VBsemi

File Size:

368.82 KB

Description:

N-channel mosfet.

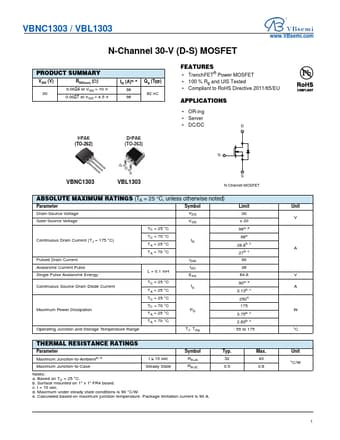

VBNC1303 / VBL1303 N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 30 RDS(on).
() 0.0024 at VGS = 10 V 0.0027 at VGS = 4.5 V ID (A)a, e 98 98 Qg (Typ) 82 nC I2PAK (TO-262) VB.

✔ VBL1303 Features

TrenchFET® Power MOSFET
100 % Rg and UIS Tested
Compliant to RoHS Directive 2011/65/EU APPLICATIONS
OR-ing
Server
DC/DC D G S N-Channel MOSFET ABSOLUTE

✔ VBL1303 Application

OR-ing
Server
DC/DC D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwis
