VBL16I07 Datasheet, Igbt, VBsemi

VBL16I07 Features

• Igbt
• Very Low VCEsat
• Low turn-off losses
• High speed switching
• Maximum junction temperature 175°C
• Ultra low gate charge (Qg)
• Avalan

PDF File Details

Part number:

VBL16I07

Manufacturer:

VBsemi

File Size:

2.10MB

Download:

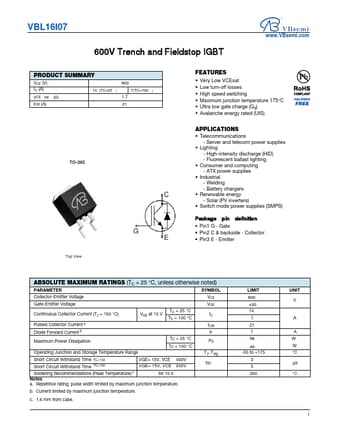

📄 Datasheet

Description:

600v trench and fieldstop igbt.

VBL16I07 Application

• Applications
• Telecommunications - Server and telecom power supplies
• Lighting - High-intensity discharge (HID) - Fluorescent ball
