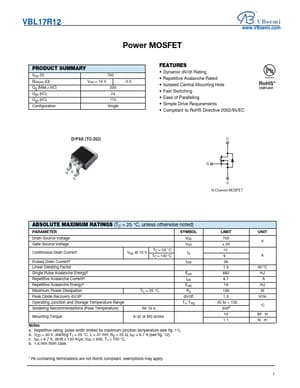

VBL17R12
VBsemi
2.27 MB
Power mosfet.
VBL17R12
Power MOSFET
www.VBsemi.com
PRODUCT SUMMARY
VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs (nC).
Qgd (nC) Configuration
700
VGS = 10 V
0.5
200
24
110
Single
FEATURES * Dynamic dV/dt Rating.
