Download Datasheet (220.61 KB)
VBL2102MA
VBsemi
220.61 KB
P-channel mosfet.

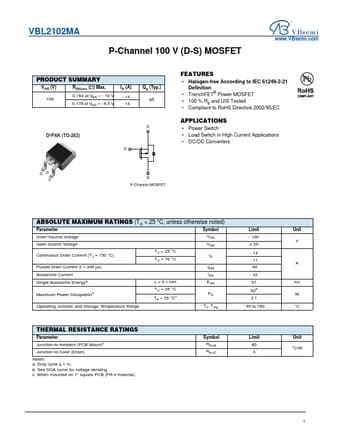

VBL2102MA
P-Channel 100 V (D-S) MOSFET
www.VBsemi.com
PRODUCT SUMMARY
VDS (V)
RDS(on) () Max.
.
-100
0.164 at VGS = - 10 V 0.178 at VGS = - 4.5 V
ID (A) - 14 - 13
Qg (Typ.) 65
D2PAK (TO-263)
.
