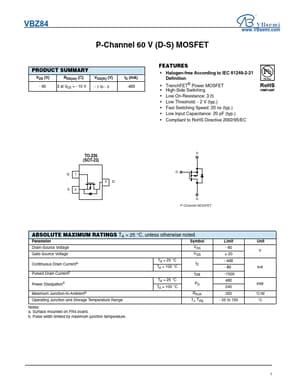

VBZ84 Datasheet, Mosfet, VBsemi

VBZ84 Features

• Mosfet
• Halogen-free According to IEC 61249-2-21 Definition
• TrenchFET® Power MOSFET
• High-Side Switching
• Low On-Resistance: 3 Ω
• Low Threshold: -

PDF File Details

Part number:

VBZ84

Manufacturer:

VBsemi

File Size:

290.61kb

Download:

📄 Datasheet

Description:

P-channel mosfet.
