VBZE20N06
VBsemi
257.60 KB
N-channel mosfet.
VBZE20N06

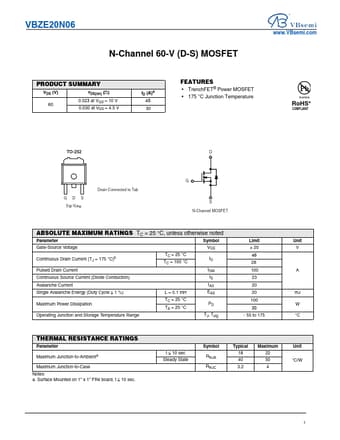

N-Channel 6 0-V (D-S) MOSFET
www.VBsemi.com
PRODUCT SUMMARY
VDS (V)
rDS(on) (Ω)
60
0.023 at VGS = 10 V
0.030 at VGS = 4.5 V
ID (A)a.
* TrenchFET® Power MOSFET
* 175 °C Junction Temperature Available RoHS
* COMPLIANT TO-252 D GDS Top View Drain Connected to Tab G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Gate-Source Voltage VGS ± 20
