VBZM100N04 N-Channel MOSFET

VBsemi

VBZM100N04 Description

VBZM100N04 N-Channel 40-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS RDS(on) VGS = 10 V ID Configuration 40 V 2 mΩ 180 A Single TO-220.

VBZM100N04 Features

* TrenchFET® Power MOSFET

VBZM100N04 Applications

* Synchronous Rectification
* Power Supplies D RoHS COMPLIANT G GDS Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 175 °C)

📥 Download Datasheet

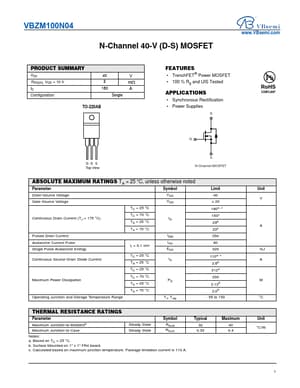

VBZM100N04 Datasheet Preview — Preview of VBZM100N04 PDF

Datasheet Details

Part number: VBZM100N04
Manufacturer: VBsemi
File Size: 444.14 KB
Datasheet: VBZM100N04-VBsemi.pdf
Description: N-Channel MOSFET
