Download Datasheet (254.13 KB)
VBZM60N06
VBsemi
254.13 KB
N-channel mosfet.

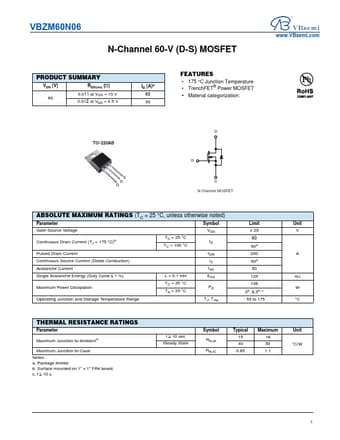

VBZM60N06
N-Channel 60-V (D-S) MOSFET
PRODUCT SUMMARY
VDS (V) 60
RDS(on) () 0.011 at VGS = 10 V.
0.012 at VGS = 4.5 V
ID (A)a 60 50
FEATURES
* 175 °C Junction Temperature * TrenchFET® Power MOSF.
