VS2302AT N-Channel MOSFET

VS2302AT Description

VS2302AT-VB VS2302AT-VB Datasheet N-Channel 20 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.028 at VGS = 4.5 V 20 0.042.

VS2302AT Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested

VS2302AT Applications

* DC/DC Converters
* Load Switch for Portable Applications ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 150 °C) TC = 70 °C TA = 25 °C ID TA = 70 °C

📥 Download Datasheet

Preview of VS2302AT PDF

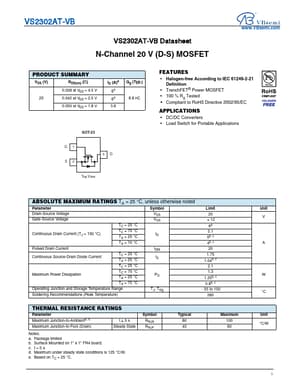

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS2302AT
Manufacturer
VBsemi
File Size
241.49 KB
Datasheet
VS2302AT-VBsemi.pdf
Description
N-Channel MOSFET
