VS2301BC-A - P-Channel Advanced Power MOSFET

Datasheet Summary

Features

P-Channel.
Enhancement mode.
Fast Switching.
Pb-free lead plating; RoHS compliant; Halogen free V DS R DS(on),TYP @VGS=-4.5V R DS(on),TYP @VGS=-3.3V R DS(on),TYP @VGS=-2.5V ID -20 V 86 mΩ 94 mΩ 106 mΩ -3 A SOT23 Part ID V2301BC-A Package Type SOT23 Marking A1SHB Tape and reel information 3000pcs/reel Maximum ratings, at T A =25 °C, unless otherwise specified Symbol Parameter V(BR)DSS VGS Drain-Source breakdown voltage Gate-Source voltage IS Diode conti.

Datasheet Details

Part number	VS2301BC-A
Manufacturer	Vanguard Semiconductor
File Size	681.51 KB
Description	P-Channel Advanced Power MOSFET
Datasheet	VS2301BC-A Datasheet

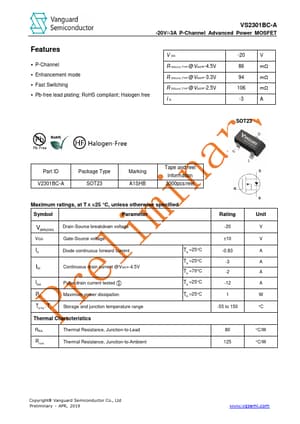

Additional preview pages of the VS2301BC-A datasheet.
