B130LW Small Signal Schottky Diode

B130LW Description

Data Sheet Customer： Product : Part No.: Issued Date: Edition : Small Signal Schottky Diode-Low VF B120LW/B130LW/B140LW 11-Jan-11 REV.A VIKING TECH.

B130LW Features

* －Tiny plastic SMD package －Low power loss, high efficiency －High current capability, low forward voltage drop －High surge capability －Guardring for over voltage protection －Ultra high-speed switching －Silicon epitaxial planar chip, metal silicon junction －Lead-free parts meet environmental standards

📥 Download Datasheet

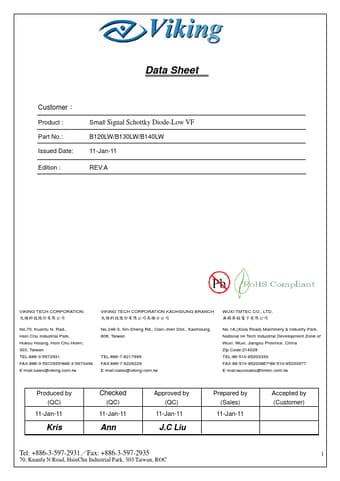

Preview of B130LW PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
B130LW
Manufacturer
VIKING TECH
File Size
126.84 KB
Datasheet
B130LW-VIKINGTECH.pdf
Description
Small Signal Schottky Diode
