B130-E3 - Surface Mount Schottky Barrier Rectifier

Features

Low profile package.
Ideal for automated placement.
Guardring for overvoltage protection.
Low power losses, high efficiency.
Low forward voltage drop.
High surge capability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
Material categorization: For definitions of compliance please see www. vishay. com/doc?99912.

Vishay

Datasheet Details

Part number	B130-E3
Manufacturer	Vishay
File Size	79.97 KB
Description	Surface Mount Schottky Barrier Rectifier
Datasheet	B130-E3 Datasheet

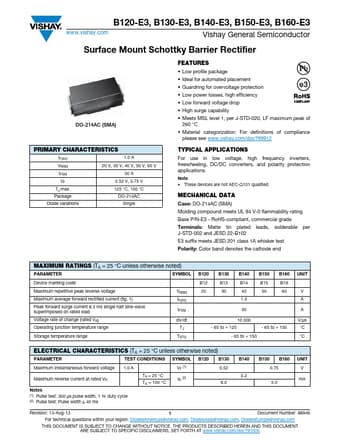

Additional preview pages of the B130-E3 datasheet.

📁 Similar Datasheet

B130 - 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
B130 - SCHOTTKY BARRIER RECTIFIER (EIC)
B1301 - PNP SIlicon Transistor (Renesas)
B1302 - PNP Epitaxial Planar Silicon Transistor (Sanyo)
B130B - 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
B130BQ - 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes)
B130L - 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (DIODES)
B130LAW - 1.0A SURFACE-MOUNT SCHOTTKY BARRIER RECTIFIER (DIODES)
B130LB - 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
B130LW - Small Signal Schottky Diode (VIKING TECH)

Other Datasheets by Vishay

B130-M3 - Surface Mount Schottky Barrier Rectifier

Full PDF Text Transcription

Click to expand full text

B120-E3, B130-E3, B140-E3, B150-E3, B160-E3 www.vishay.com Vishay General Semiconductor Surface Mount Schottky Barrier Rectifier DO-214AC (SMA) PRIMARY CHARACTERISTICS IF(AV) 1.0 A VRRM 20 V, 30 V, 40 V, 50 V, 60 V IFSM 30 A VF 0.52 V, 0.75 V TJ max. Package 125 °C, 150 °C DO-214AC Diode variations Single FEATURES • Low profile package • Ideal for automated placement • Guardring for overvoltage protection • Low power losses, high efficiency • Low forward voltage drop • High surge capability • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C • Material categorization: For definitions of compliance please see www.vishay.
