B1302 - PNP Epitaxial Planar Silicon Transistor

Features

  • Adoption of FBET, MBIT processes.
  • Low collector-to-emitter saturation voltage.
  • Large current capacity.
  • Fast switching speed.
  • Ultrasmall size making it easy to provide high-density, small-sized hybrid IC’s. Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Tempera.

📥 Download Datasheet

Datasheet preview – B1302

Datasheet Details

Part number B1302
Manufacturer Sanyo
File Size 69.08 KB
Description PNP Epitaxial Planar Silicon Transistor
Datasheet download datasheet B1302 Datasheet
Additional preview pages of the B1302 datasheet.

📁 Similar Datasheet

  • B130 - 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • B130 - SCHOTTKY BARRIER RECTIFIER (EIC)
  • B130-E3 - Surface Mount Schottky Barrier Rectifier (Vishay)
  • B130-M3 - Surface Mount Schottky Barrier Rectifier (Vishay)
  • B1301 - PNP SIlicon Transistor (Renesas)
  • B130B - 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
  • B130BQ - 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes)
  • B130L - 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (DIODES)
  • B130LAW - 1.0A SURFACE-MOUNT SCHOTTKY BARRIER RECTIFIER (DIODES)
  • B130LB - 1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)
Other Datasheets by Sanyo
  • B1324 - PNP / NPN Epitaxial Planar Silicon Transistors
  • B1325 - PNP / NPN Epitaxial Planar Transistors
  • B1388 - 2SB1388
  • B1396 - PNP Epitaxial Planar Silicon Transistor
  • B1397 - PNP/NPN Epitaxial Planar Silicon Transistors

Full PDF Text Transcription

Click to expand full text

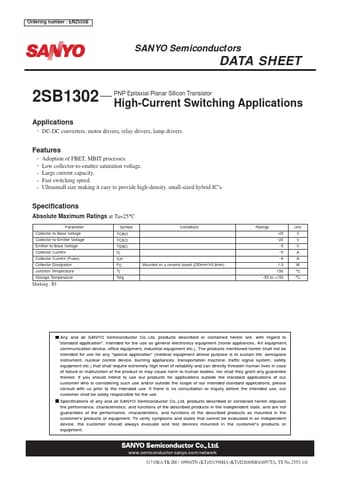

Ordering number : EN2555B 2SB1302 SANYO Semiconductors DATA SHEET 2SB1302 PNP Epitaxial Planar Silicon Transistor High-Current Switching Applications Applications • DC-DC converters, motor drivers, relay drivers, lamp drivers. Features • Adoption of FBET, MBIT processes. • Low collector-to-emitter saturation voltage. • Large current capacity. • Fast switching speed. • Ultrasmall size making it easy to provide high-density, small-sized hybrid IC’s.
