B1396 - PNP Epitaxial Planar Silicon Transistor

Product Overview

Sanyo

Part number	B1396
Manufacturer	Sanyo
File Size	87.60 KB
Description	PNP Epitaxial Planar Silicon Transistor
Datasheet	B1396 Datasheet

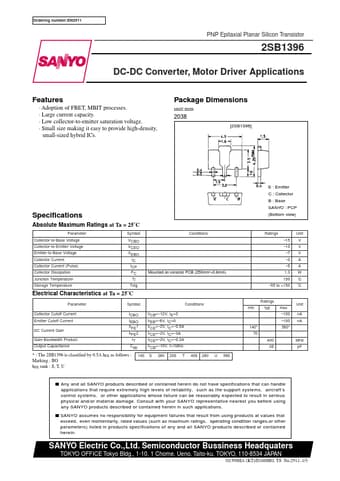

Additional preview pages of the B1396 datasheet.

Adoption of FBET, MBIT processes.
Large current capacity.
Low collector-to-emitter saturation voltage.
Small size making it easy to provide high-density, small-sized hybrid ICs. Package Dimensions unit:mm 2038 [2SB1396] Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Symbol Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature VCBO VCEO VEB.
