B1391 2SB1391

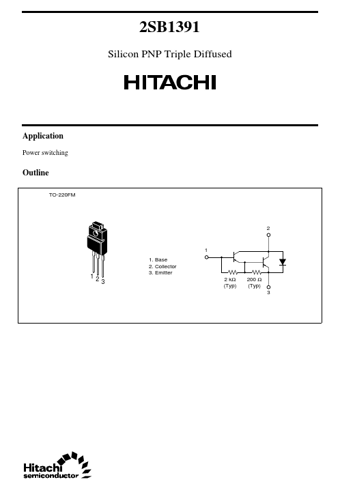

2SB1391 Silicon PNP Triple Diffused Application Power switching Outline TO-220FM 123 1. Base 2. Collector 3. Emitter 2 1 2 kΩ (Typ) 200 Ω (Typ) 3 2SB1391 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Note: 1. Value at TC = 25°C. Symbol VCBO VCEO VEBO IC I C(peak) PC PC 1 Tj Tstg Ratings 12.
