CD6309 - 0.5W Zener Diode

CD6309 Description

CD6309 - CD6349 0.5 W Zener Diode Chips .
This zener diode chip series is military qualified to MIL-PRF-19500/533 and is ideal for high reliability applications where a failure cannot be toler.

CD6309 Features

* Low reverse Leakage Characteristics
* Low Noise Characteristics
* All Junctions Completely Protected with Silicon Dioxide
* Electronically Equivalent to 1N6309 - 1N6349
* Compatible with All Wire Bonding and Die Attach Techniques
* JANHC, JANKC avail

CD6309 Applications

* where a failure cannot be tolerated. It includes zener selections from 2.4 to 110 volts in standard 5% tolerances as well as tighter tolerances identified by different suffix letters on the part number. They are also available in surface mount and axial lead packages. VPT Components also offers nume

📥 Download Datasheet

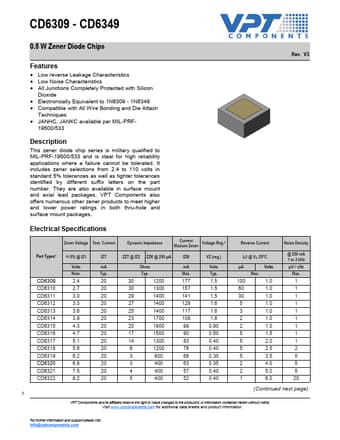

Preview of CD6309 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CD6309
Manufacturer
VPT
File Size
466.27 KB
Datasheet
CD6309-VPT.pdf
Description
0.5W Zener Diode
