VS2302AT - N-Channel Advanced Power MOSFET

Datasheet Summary

Description

VS2302AT designed by the trench processing techniques to achieve extremely low on-resistance.

And fast switching speed and improved transfer effective .

Features

Ron(typ. )=30 mΩ @VGS=4.5V.
Low On-Resistance.
150°C Operating Temperature.
Fast Switching.
Lead-Free, RoHS Compliant VS2302AT 20V/3.2A N-Channel Advanced Power MOSFET.

Datasheet Details

Part number	VS2302AT
Manufacturer	Vanguard Semiconductor
File Size	283.39 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	VS2302AT Datasheet

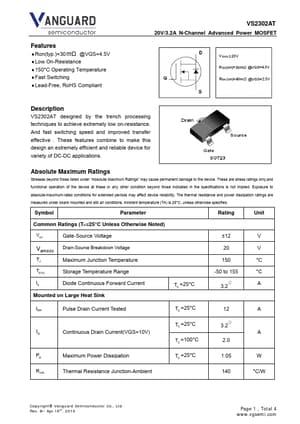

Additional preview pages of the VS2302AT datasheet.

📁 Similar Datasheet

VS2302AT - N-Channel MOSFET (VBsemi)

VS2301BC - P-Channel 20V MOSFET (VBsemi)

VS2310 - HDBaseT transmitter (Valens)

VS232 - Dual High Performance RS232 Line Drivers / Receivers (Vossel)

VS23S010C - 1 Megabit SPI SRAM (VLSI)

VS23S010C-S - 1 Megabit SPI SRAM (VLSI)

VS23S010D - 1-Megabit SPI SRAM (VLSI)

VS23S010D-S - 1-Megabit SPI SRAM (VLSI)

VS23S040D - 4-Megabit SPI SRAM (VLSI)

VS2000 - HDBaseT transmitter (Valens)

Full PDF Text Transcription

Click to expand full text

Features ♦Ron(typ.)=30 mΩ @VGS=4.5V ♦Low On-Resistance ♦150°C Operating Temperature ♦Fast Switching ♦Lead-Free, RoHS Compliant VS2302AT 20V/3.2A N-Channel Advanced Power MOSFET Description VS2302AT designed by the trench processing techniques to achieve extremely low on-resistance. And fast switching speed and improved transfer effective . These features combine to make this design an extremely efficient and reliable device for variety of DC-DC applications. Absolute Maximum Ratings Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only;and functional operation of the device at these or any other condition beyond those indicated in the specifications is not implied.
