VS3622AA - N-Channel Advanced Power MOSFET

VS3622AA Description

.

VS3622AA Features

* N-Channel，5V Logic Level Control
* Enhancement mode
* Low on-resistance RDS(on) @ VGS=4.5 V
* Fast Switching
* Pb-free lead plating; RoHS compliant VS3622AA 30V/45A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5 V ID 30 V 8.8 mΩ 13 mΩ 45 A

📥 Download Datasheet

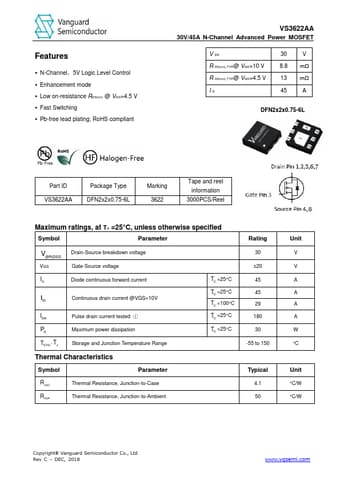

Preview of VS3622AA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS3622AA
Manufacturer
Vanguard Semiconductor
File Size
634.16 KB
Datasheet
VS3622AA-VanguardSemiconductor.pdf
Description
N-Channel Advanced Power MOSFET
